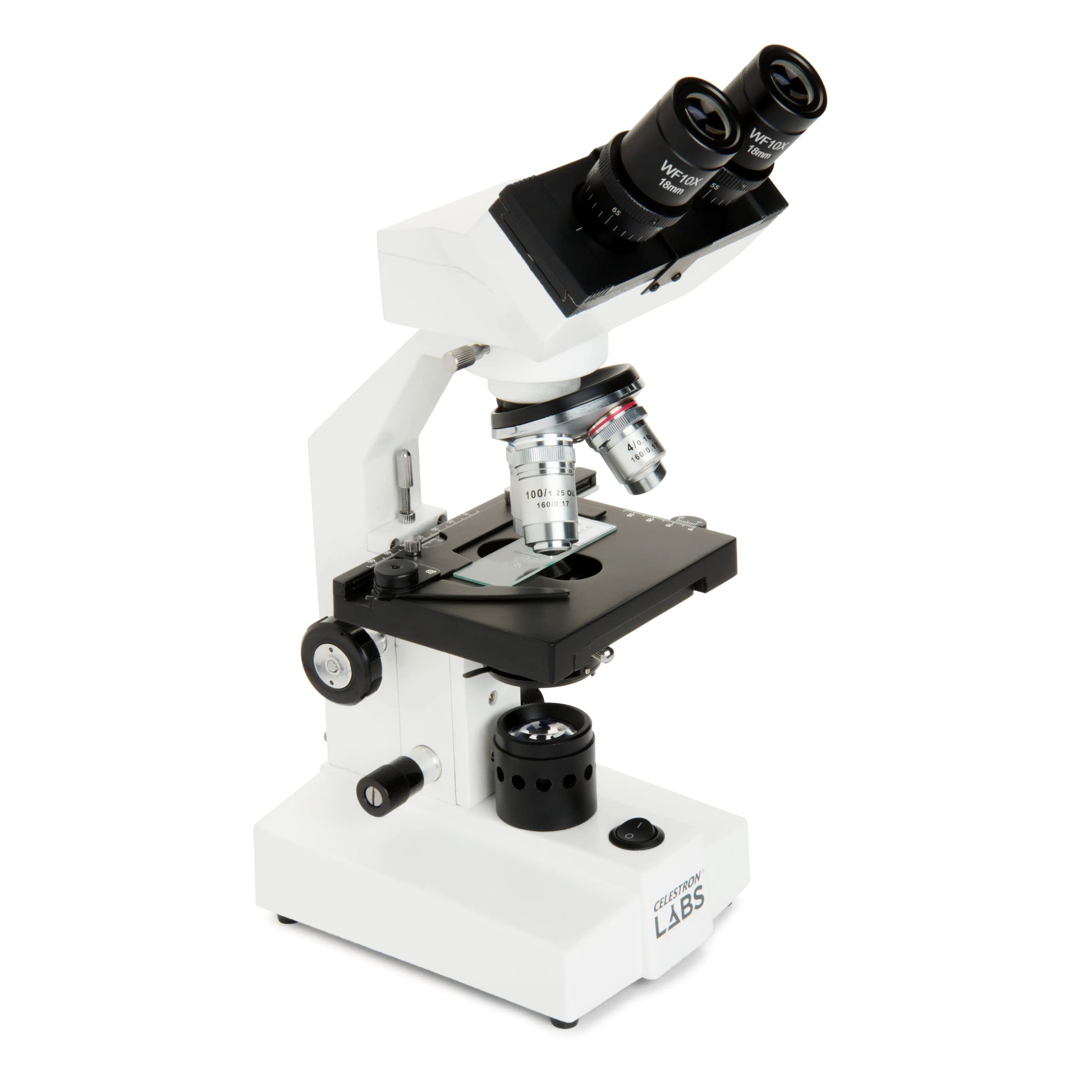

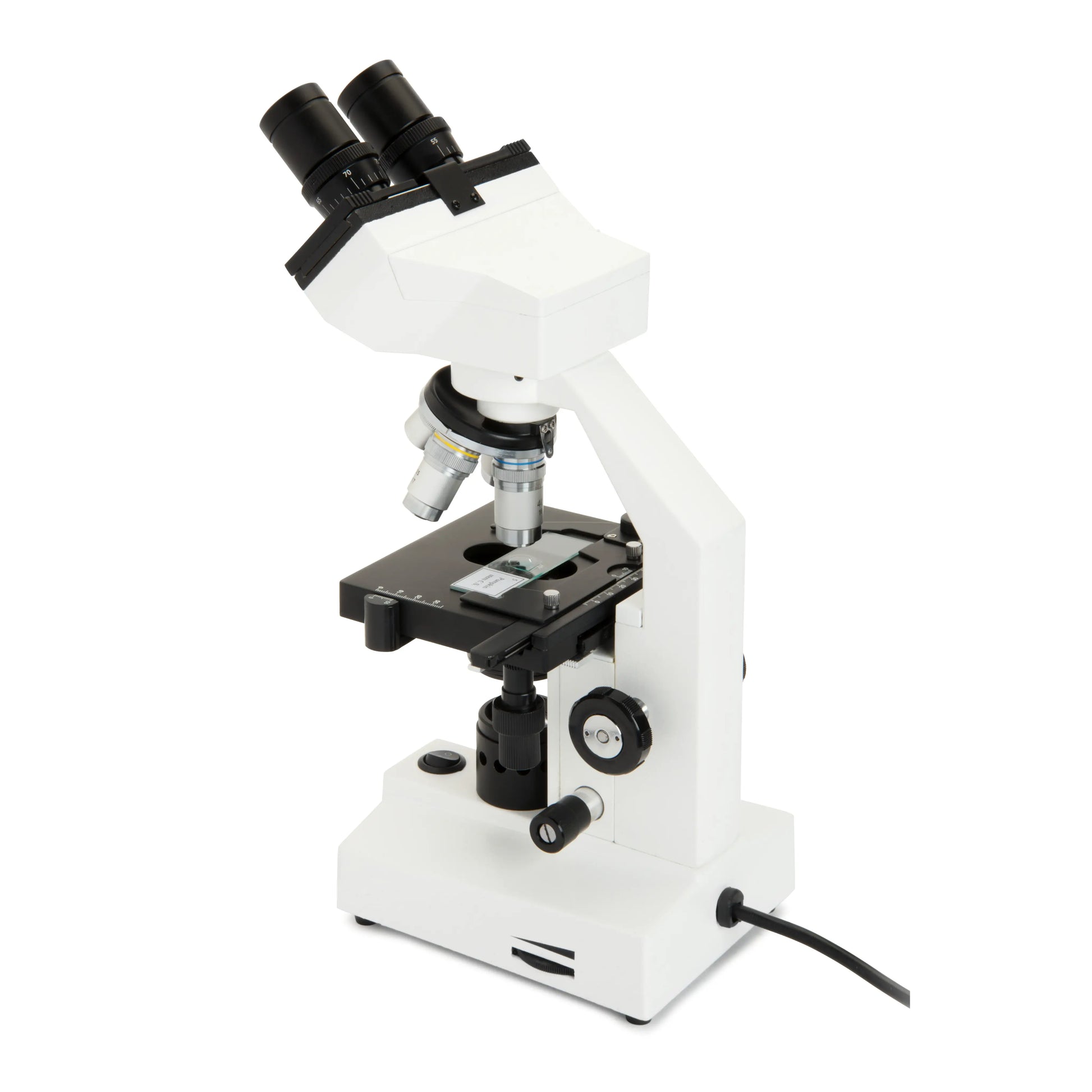

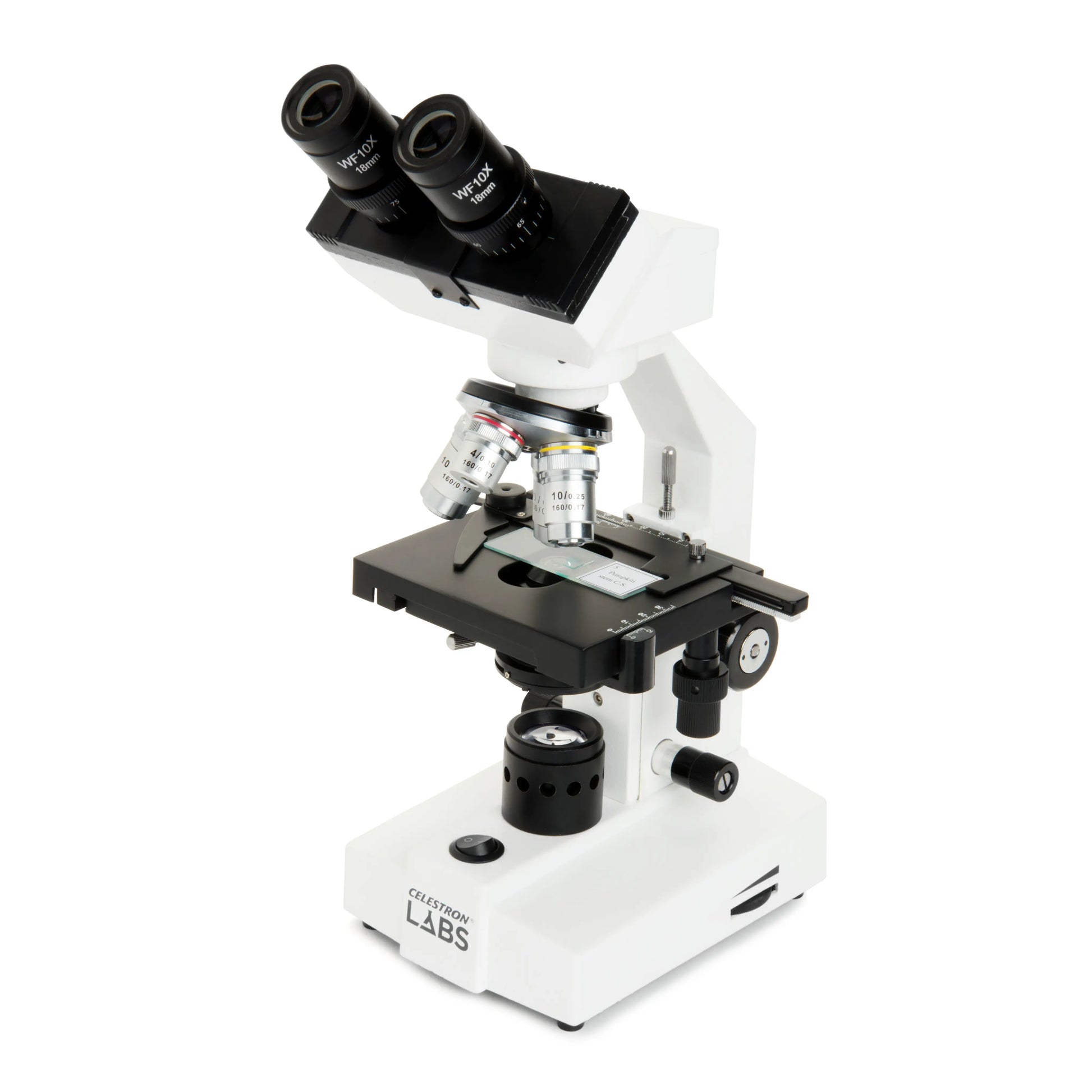

Celestron Labs CB1000CF Compound Binocular Microscope

Celestron Labs CB1000CF Compound Binocular Microscope

Binocular Precision and 1000x Power for Lab, Classroom, and Field Use

The Celestron Labs CB1000CF Compound Microscope combines the comfort of binocular viewing with high-performance optics and robust mechanical controls, delivering a professional-level experience at an accessible price. With magnification up to 1000x, a fully mechanical stage, and fine/coarse focusing, this microscope is designed for students, educators, and lab professionals who need reliable precision and clarity.

This model features achromatic DIN objectives (4x, 10x, 40x, 100x oil immersion) and dual 10x eyepieces for bright, true-colour viewing at four magnification levels—40x, 100x, 400x, and 1000x. Whether you're exploring prepared slides or live samples, the Abbe condenser with iris diaphragm and LED lower illumination ensure well-lit, high-contrast images.

Key Features

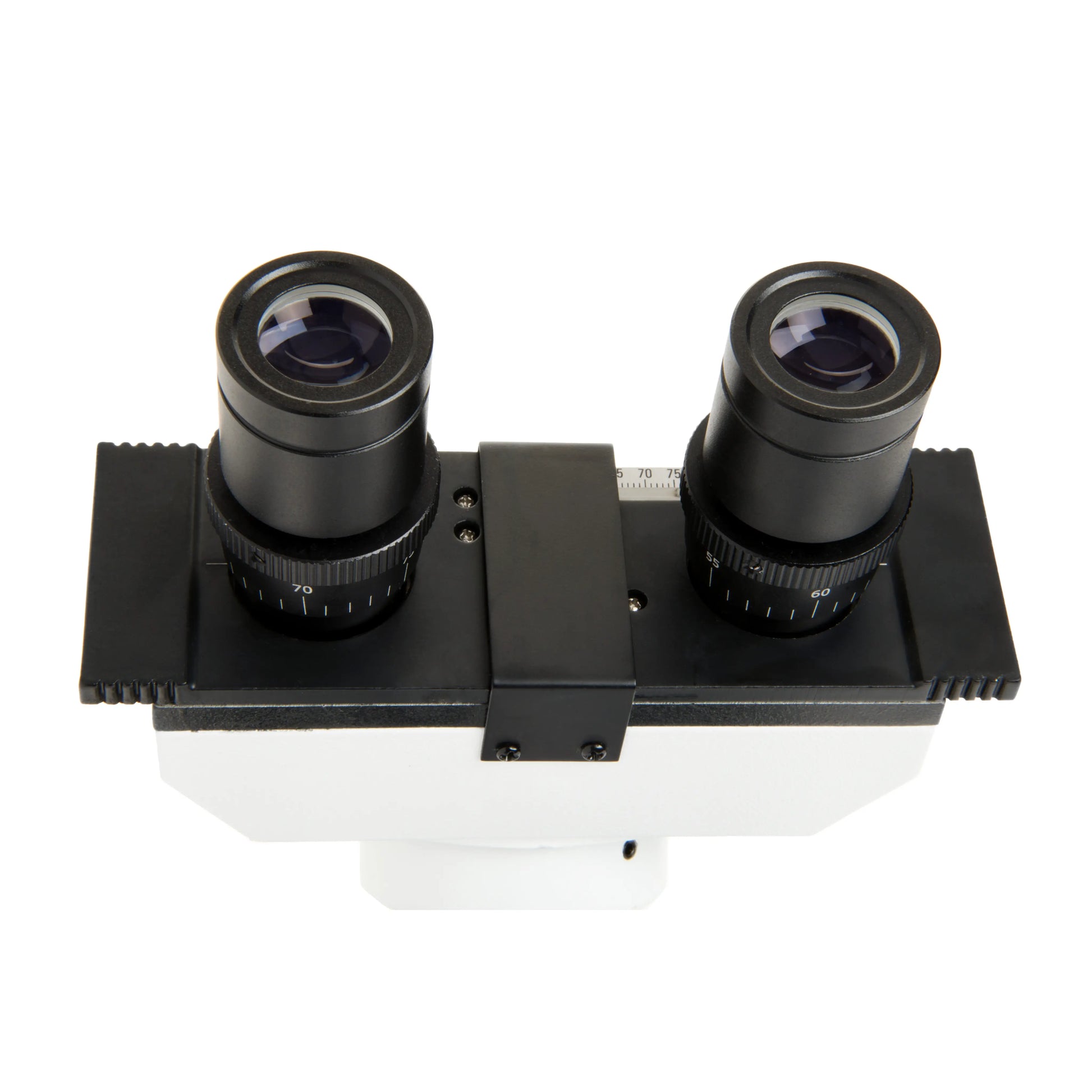

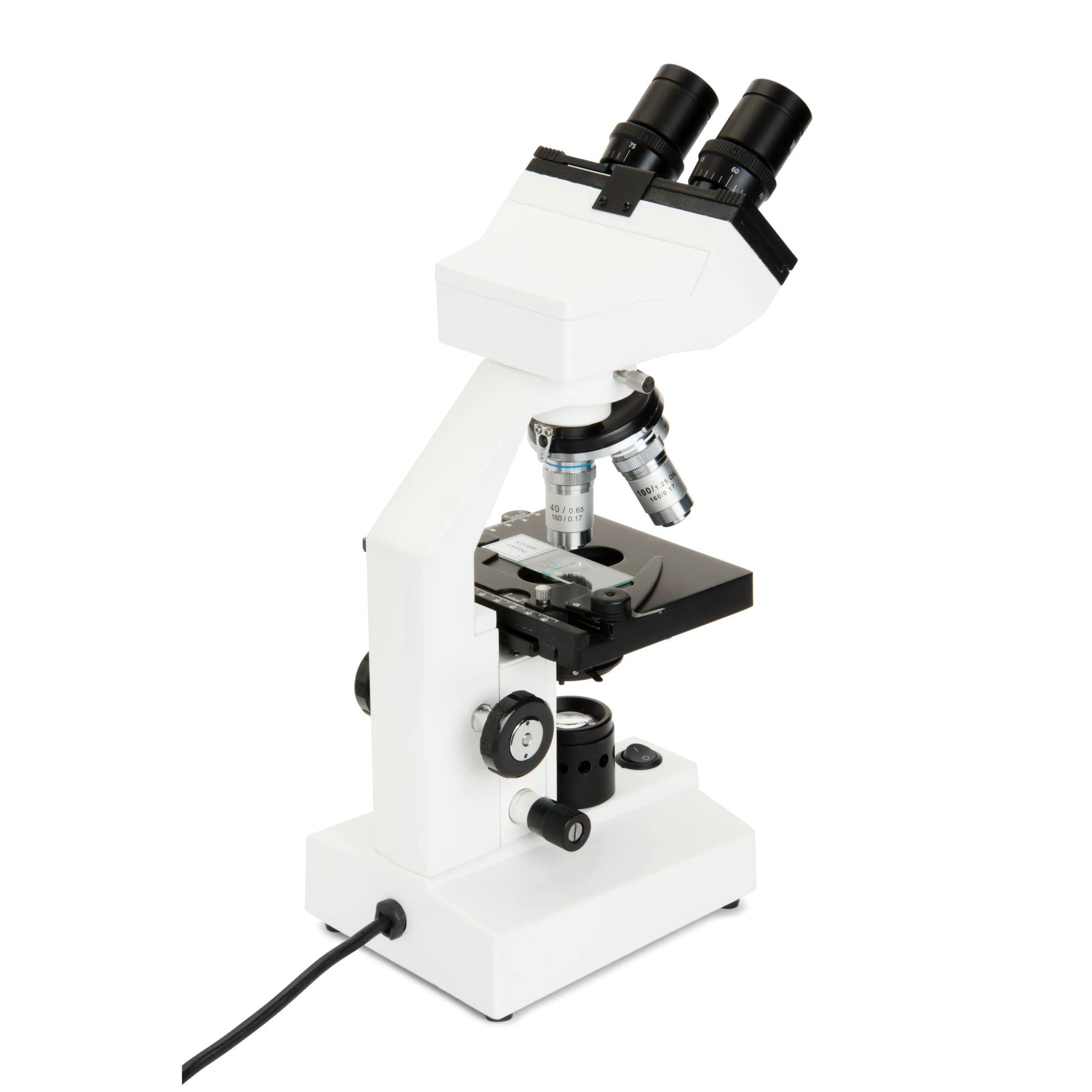

Binocular Viewing with 360° Rotatable Head
Comfortable for extended use, the binocular head features a 45° incline and interpupillary distance adjustment. Fully rotatable, it’s ideal for classroom sharing and ergonomic viewing.

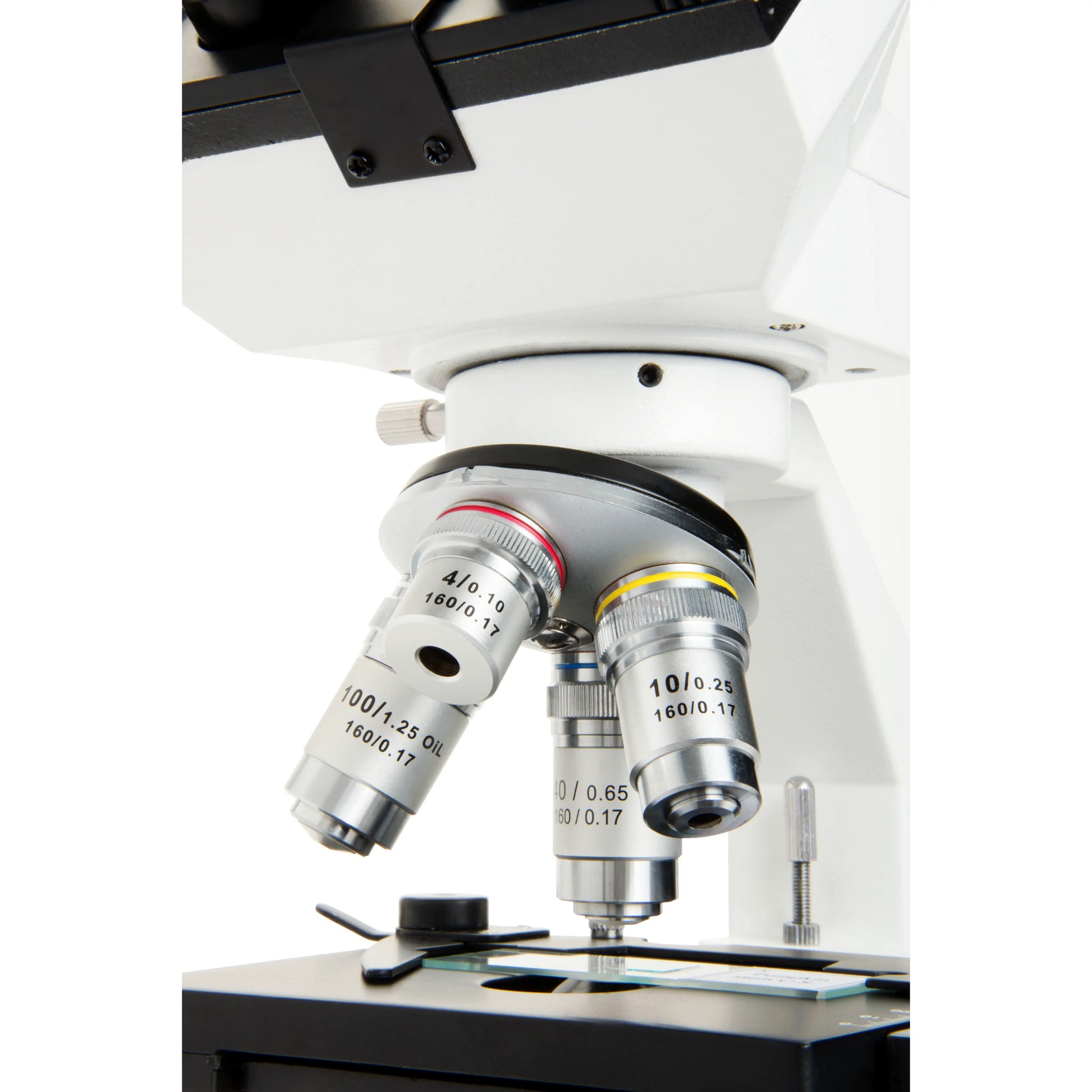

Precision Optical Power up to 1000x
Equipped with 4 achromatic objectives and 10x eyepieces with pointers, this microscope delivers four magnification options:
40x, 100x, 400x, and 1000x—ideal for a wide range of biological studies.

Coaxial Coarse and Fine Focus
Achieve crisp focus with individually adjustable knobs offering 0.1mm fine focus travel per rotation. Rack-and-pinion mechanics ensure smooth, reliable control.

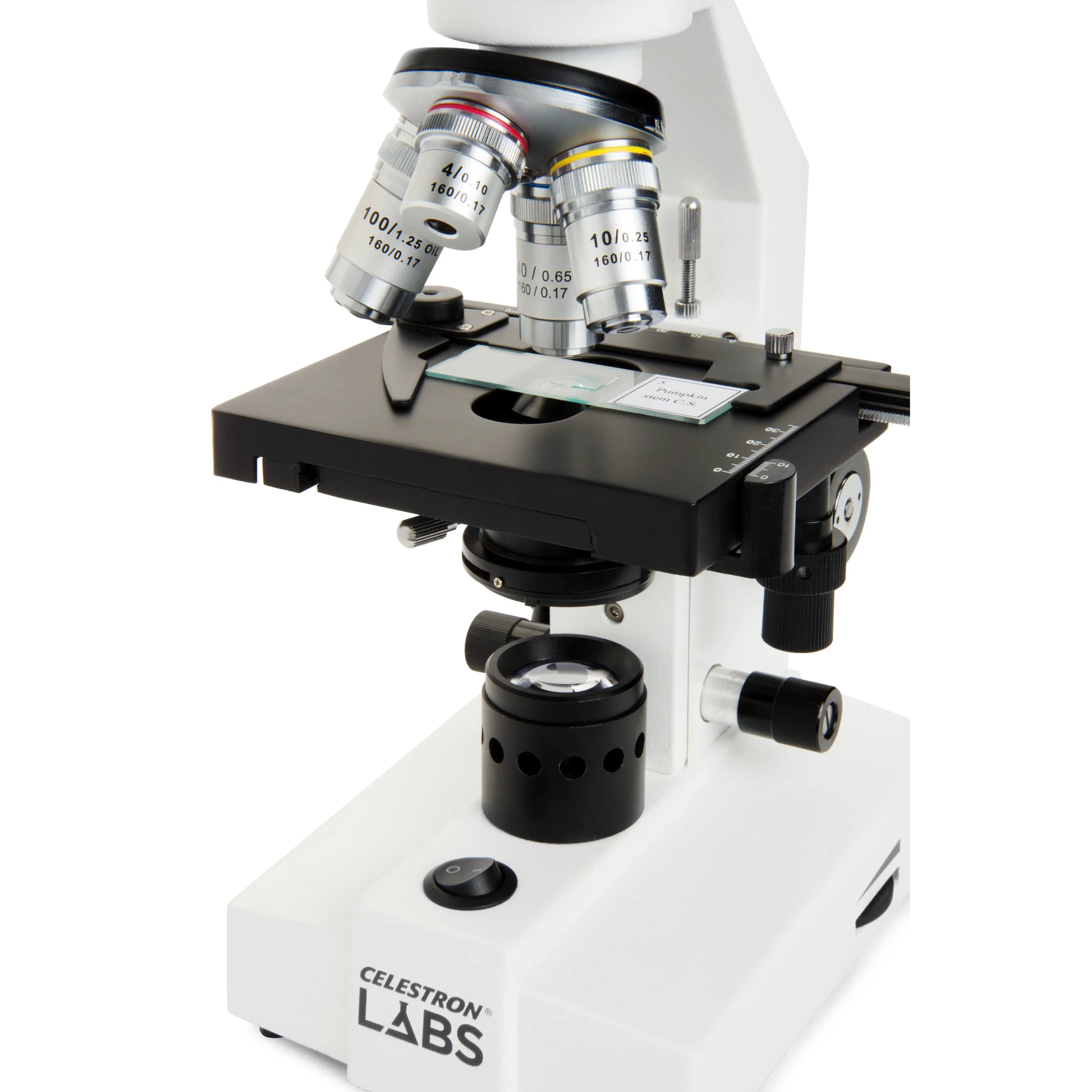

Mechanical Stage for Precision Slide Movement
The 110mm x 120mm mechanical stage features metal slide clips and dual axis controls, allowing for smooth, hands-free positioning of specimens.

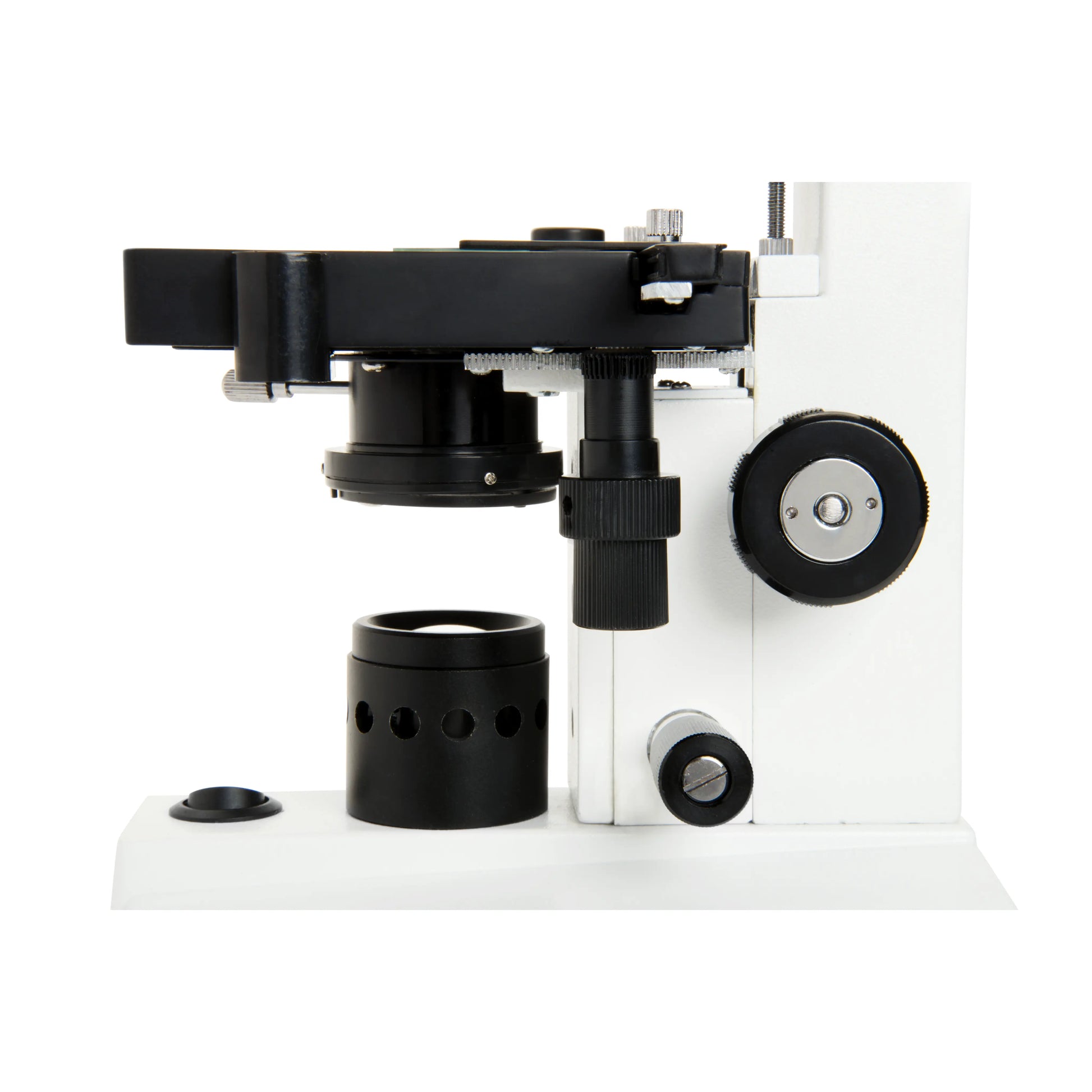

Abbe Condenser with Iris Diaphragm
For accurate light control and resolution, the built-in 1.25 NA Abbe condenser allows you to fine-tune illumination for optimal image quality, especially at higher magnifications.

Adjustable LED Illumination
Cool-running lower LED lighting with dial-controlled brightness provides consistent, even illumination for viewing translucent samples.

Durable All-Metal Construction
Built to withstand frequent lab and classroom use, the CB1000CF features a sturdy metal frame for long-term durability and stability.

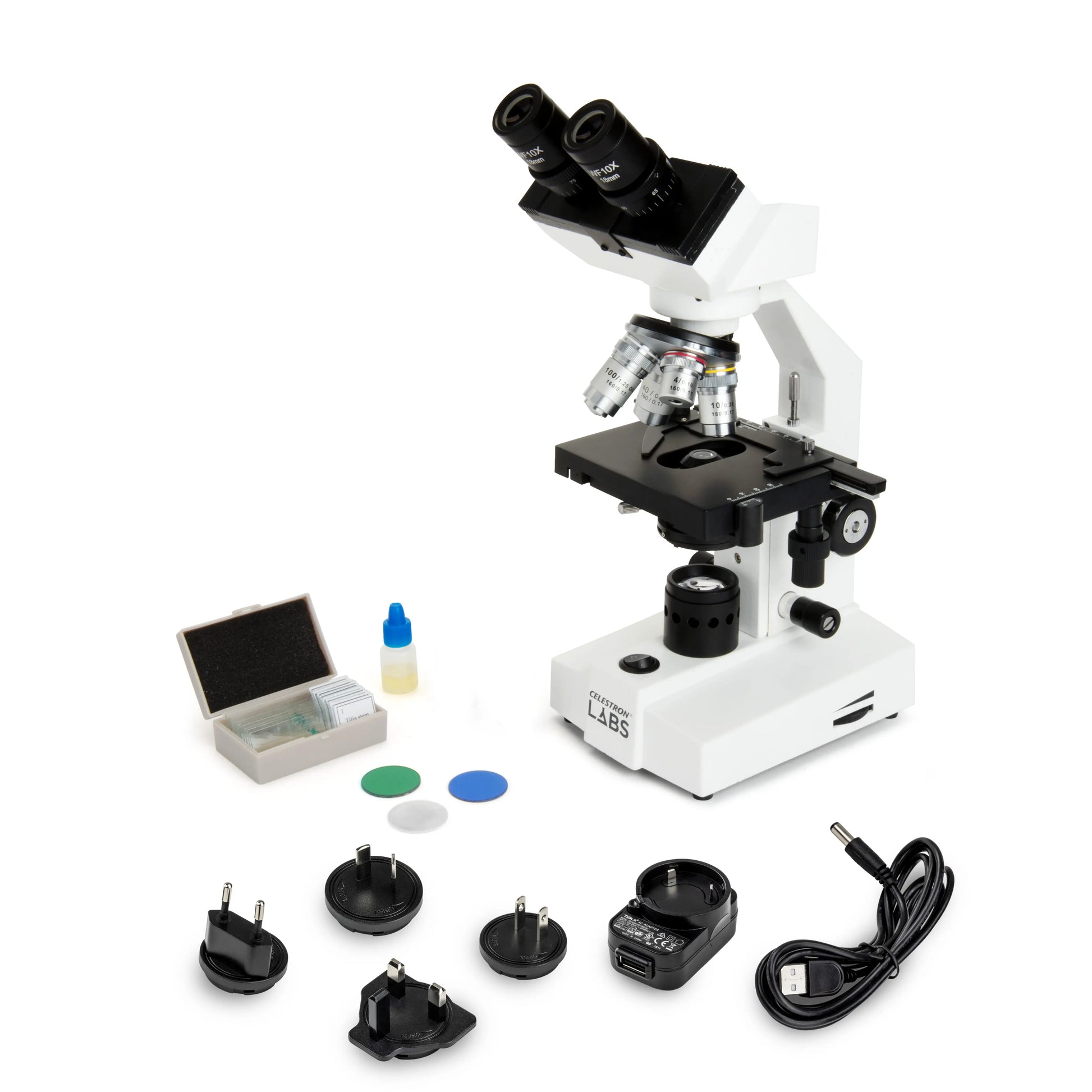

Slide Set and Accessories Included
Get started immediately with 10 prepared slides, three colour filters, immersion oil, and a universal AC power adapter with global plug types.

Technical Specifications

Included Accessories

• 2 x 10x Wide-Field Eyepieces (with pointers)

• 4 DIN Objectives: 4x, 10x, 40x, 100x Oil Immersion

• Mechanical Stage with Dual Axis Controls

• Universal AC Adapter with Plugs (A, C, G, I)

• Power Adapter Cord

• 3 Colour Filters: Blue, Green, White Opaque

• Immersion Oil (Type B, Cedar Wood)

• 10 Prepared Slides:

  1. Wall of stomach (section)

  2. Stratified flat epithelium (section)

  3. Testis (section)

  4. Aspergillus (whole mount)

  5. Rhizopus nigricans (whole mount)

  6. Small intestine (cross-section)

  7. Lily anther (cross-section)

  8. Hydrilla verticillata (whole mount)

  9. Spirogyra (whole mount)

  10. Lily ovary (cross-section)

Ideal For

• High school and university biology studies

• Educational laboratories and training environments

• Advanced hobbyists and microscopy enthusiasts

• Medical, botanical, and microbiological observation

Why Choose the Celestron Labs CB1000CF?

With its binocular head, 1000x magnification, precision mechanical stage, and fine focus controls, the CB1000CF is an excellent choice for users who need laboratory-grade capability in a compact, cost-effective design. Ideal for in-depth specimen analysis and long-term use, it offers everything needed for professional-grade microscopy in one complete package.
