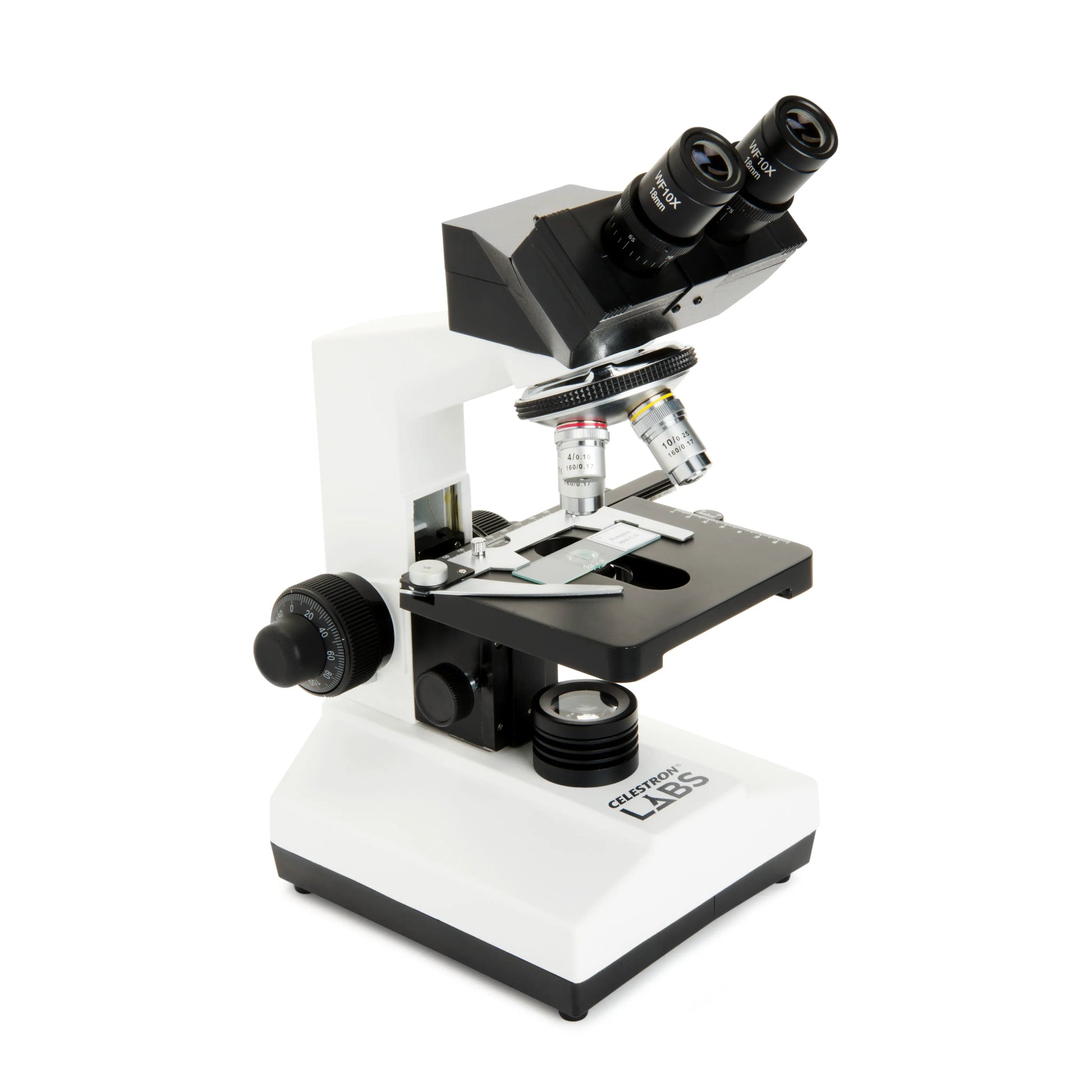

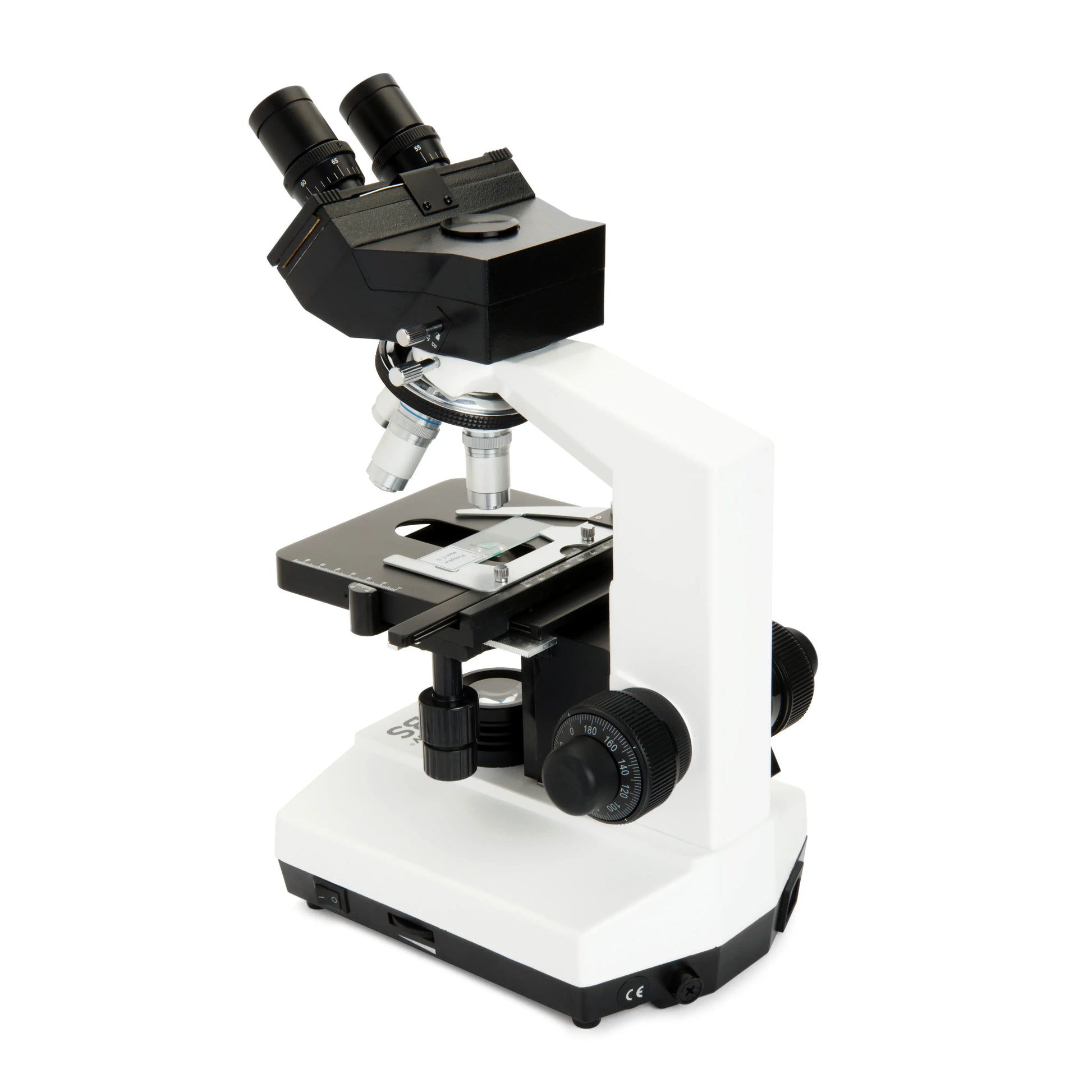

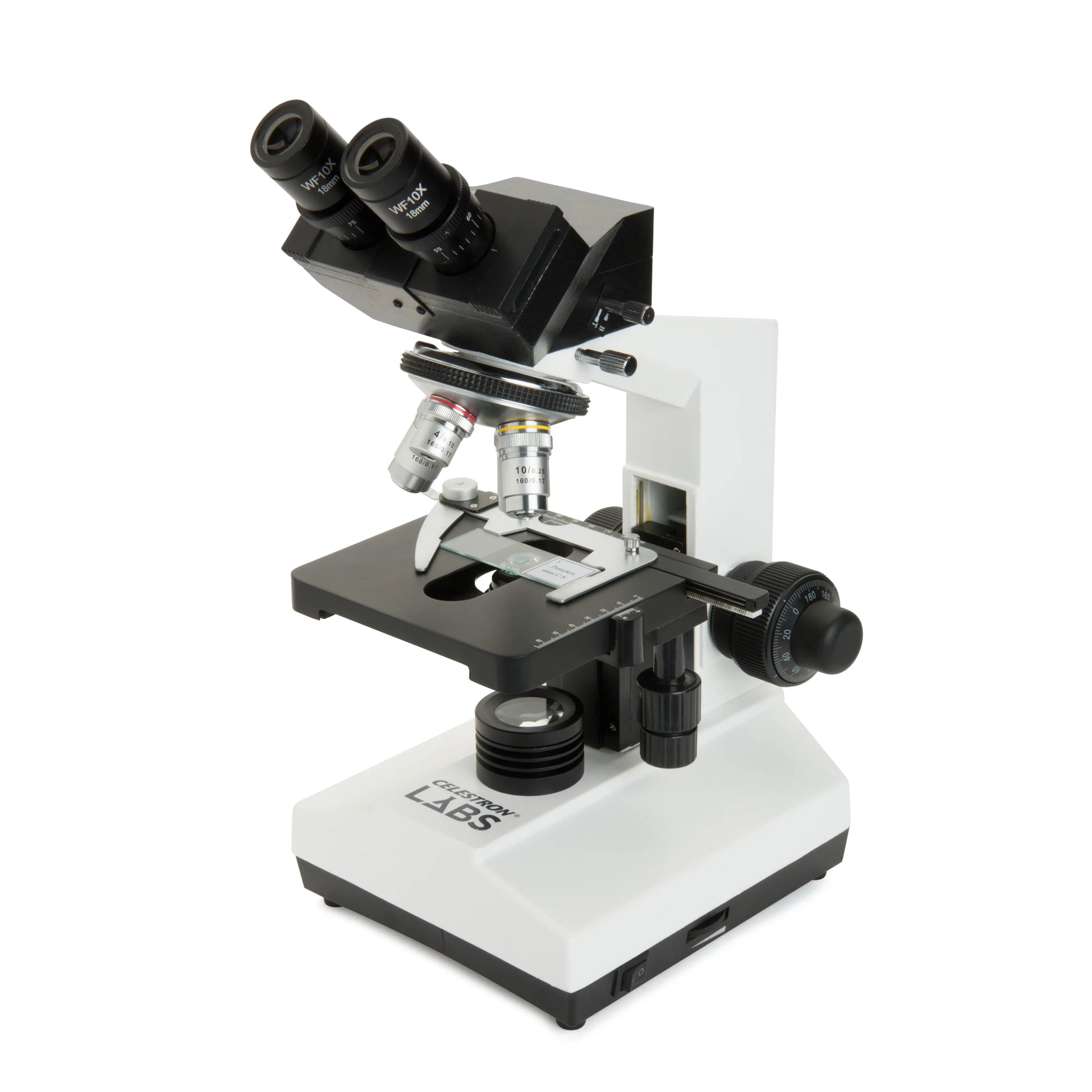

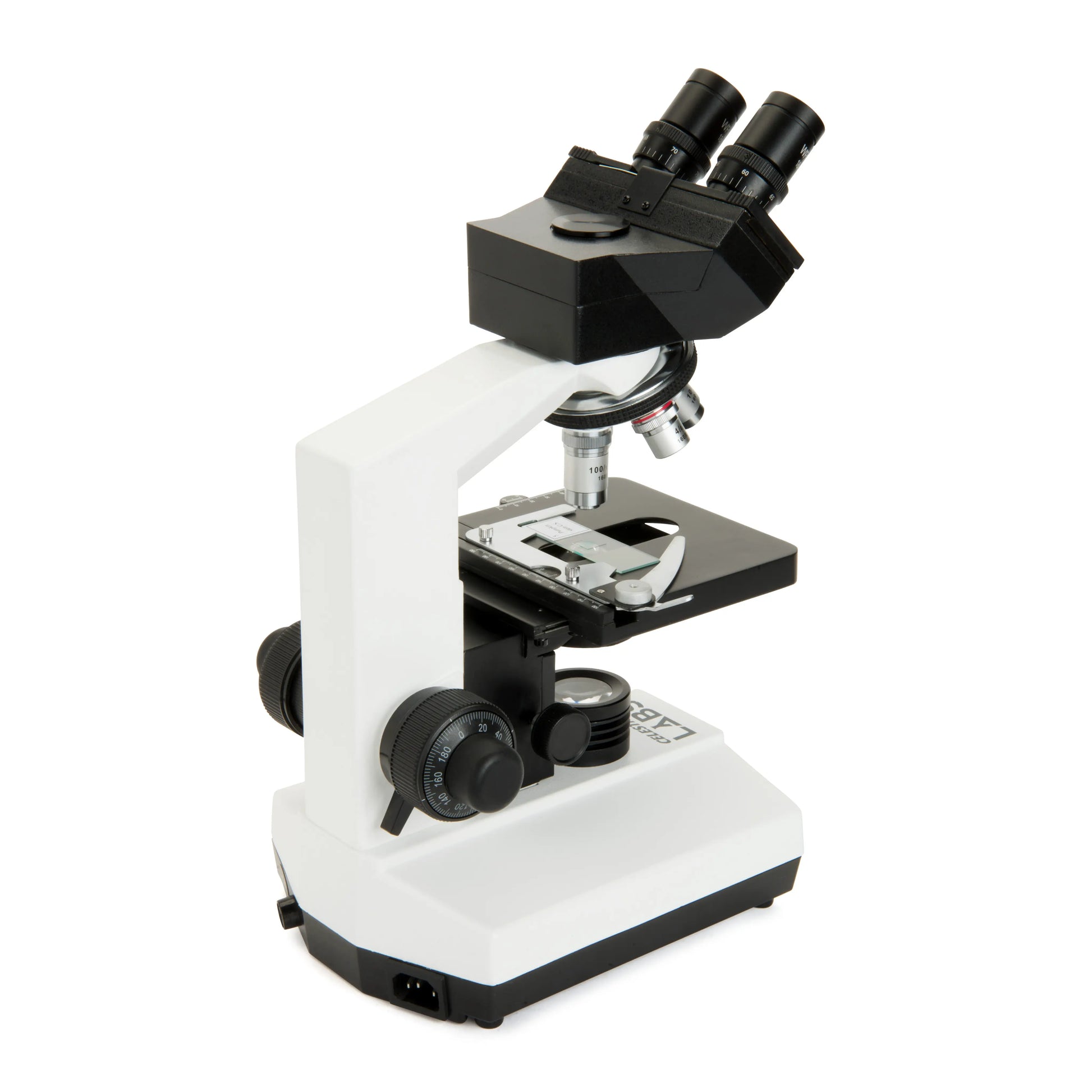

Celestron Labs CB2000C Compound Binocular Microscope

Celestron Labs CB2000C Compound Trinocular Microscope

Professional 2000x Microscopy with Trinocular Imaging Capability

The Celestron Labs CB2000C Compound Microscope is a professional-grade instrument designed for serious users in laboratories, classrooms, and research environments. With magnification up to 2000x, high-precision optical control, and an included trinocular adapter for camera integration, this microscope offers advanced functionality in a durable, all-metal construction.

Whether you’re observing cellular structures, microorganisms, or prepared biological samples, the CB2000C provides crystal-clear images through achromatic DIN objectives, precision LED illumination, and a fully mechanical stage with fine centring controls. The trinocular eyepiece tube allows for seamless integration with imaging systems, making it ideal for documentation, live display, or instructional use.

Key Features

Magnification Up to 2000x

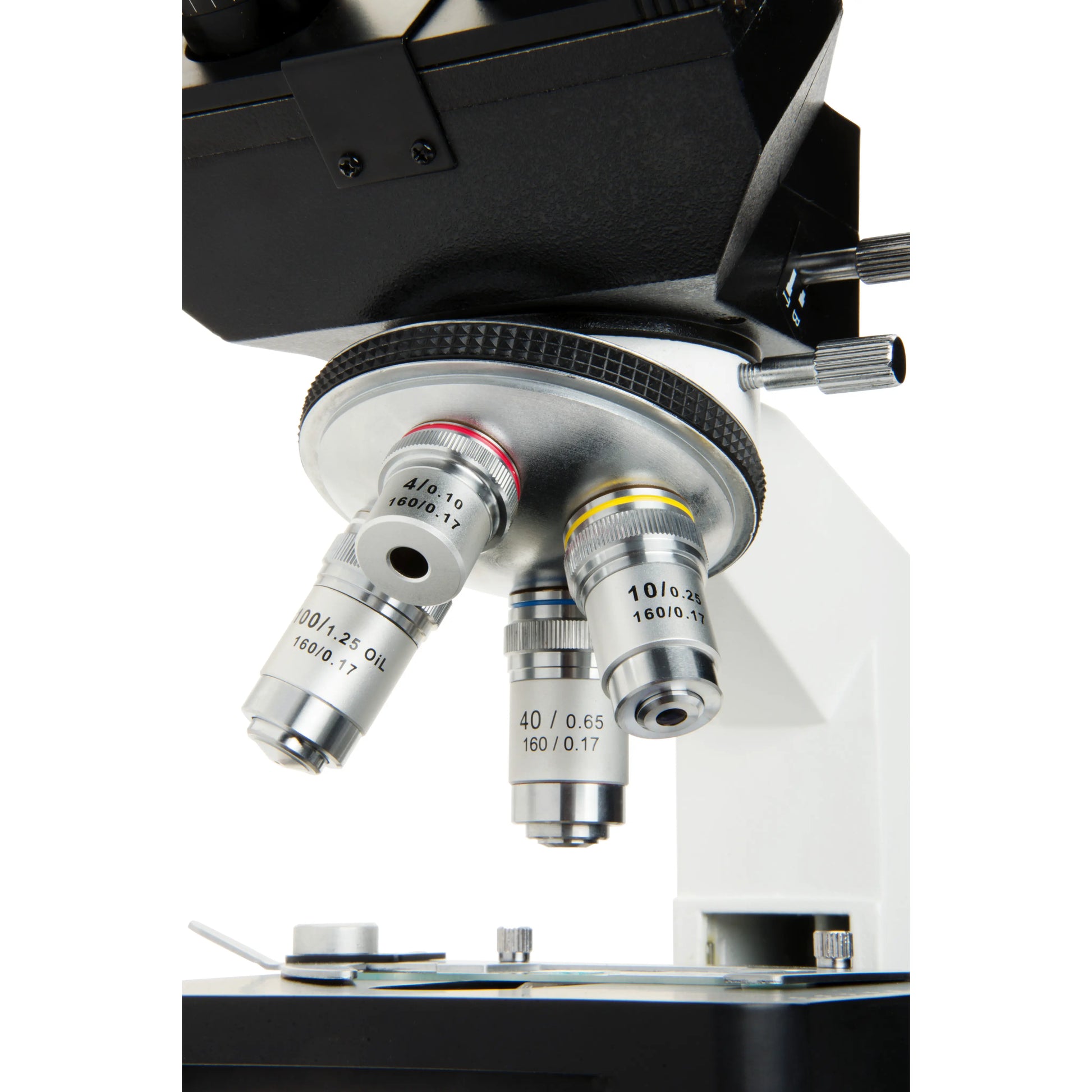

Paired with 10x and 20x eyepieces and achromatic objective lenses (4x, 10x, 40x, 100x oil), the CB2000C delivers eight magnification levels:
40x, 80x, 100x, 200x, 400x, 800x, 1000x, and 2000x.

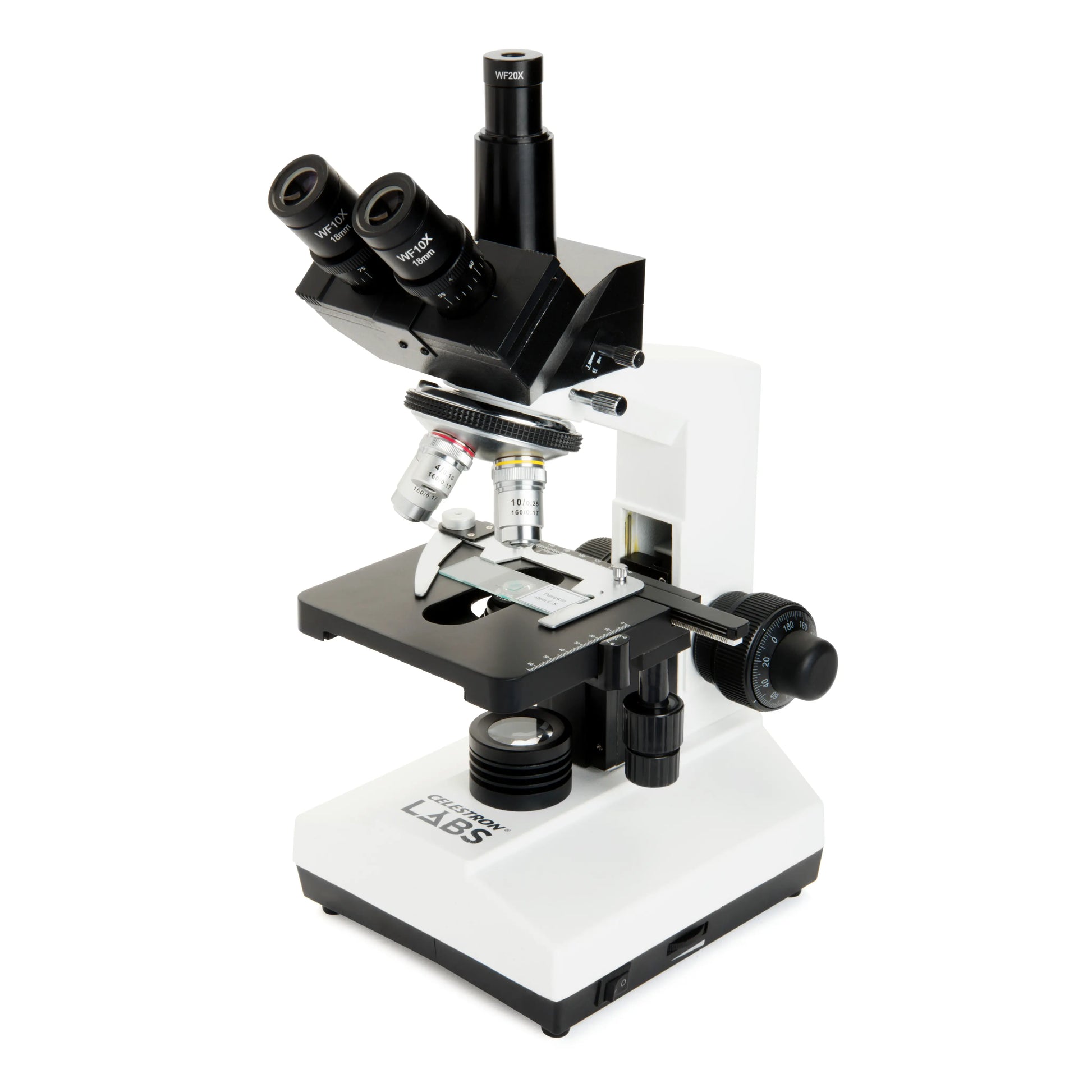

Trinocular Head for Camera Integration
The 360° rotatable trinocular head offers a comfortable 45° viewing angle, interpupillary adjustment, and an adapter tube for mounting a digital or DSLR camera—ideal for research documentation, teaching, and live display.

Precision LED Illumination with Abbe Condenser
An integrated NA 1.25 Abbe condenser and iris diaphragm allow you to concentrate, control, and shape the LED light beam, enhancing contrast, brightness, and depth of field for high-resolution imaging at every magnification.

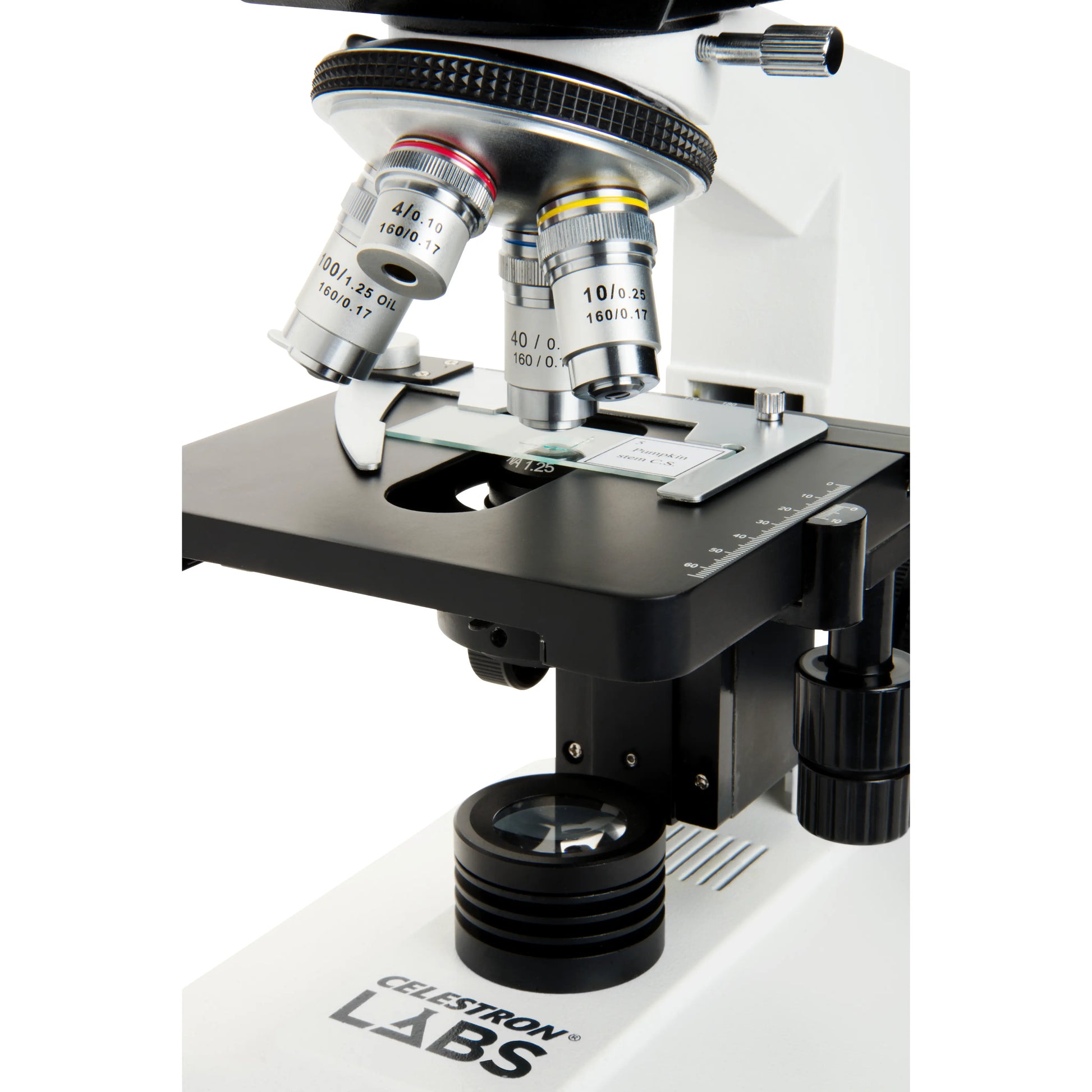

Mechanical Stage for Smooth Slide Control
The 140mm x 140mm stage is fully mechanical with smooth X/Y axis control knobs, ensuring accurate centring and tracking of specimens.

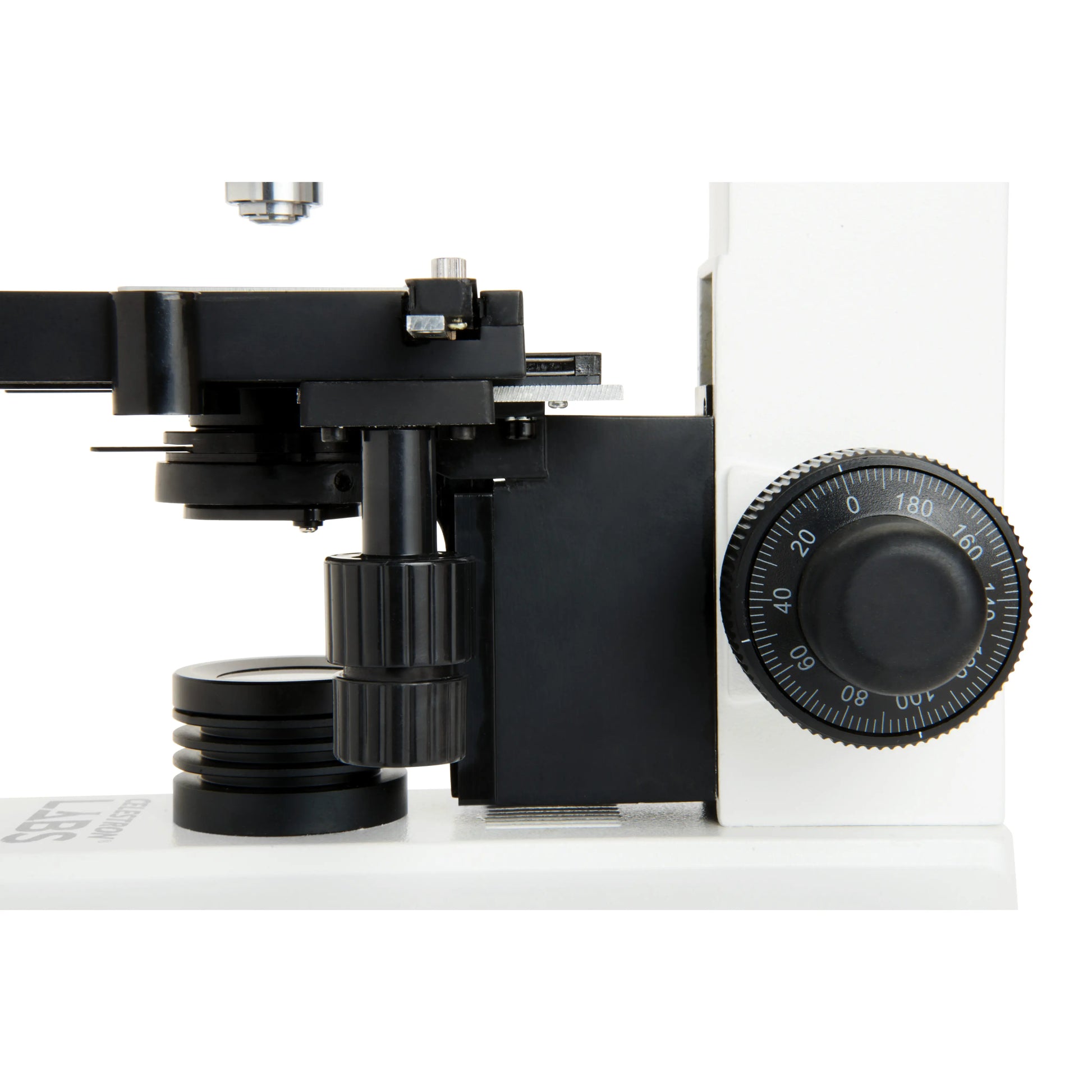

Coaxial Coarse and Fine Focus
Dual concentric focus knobs with 0.2mm fine focus travel per rotation allow for precise focusing, critical for high-magnification work, especially at 1000x and 2000x.

All-Metal Construction
Robust and built for long-term use, the CB2000C’s full metal frame ensures stability and durability in busy lab or classroom environments.

Color Filters and Immersion Oil Included
Enhance specimen visibility with blue, green, and white opaque filters, and achieve maximum resolution at 100x oil immersion with the included Type B high-viscosity cedar wood oil.

Technical Specifications

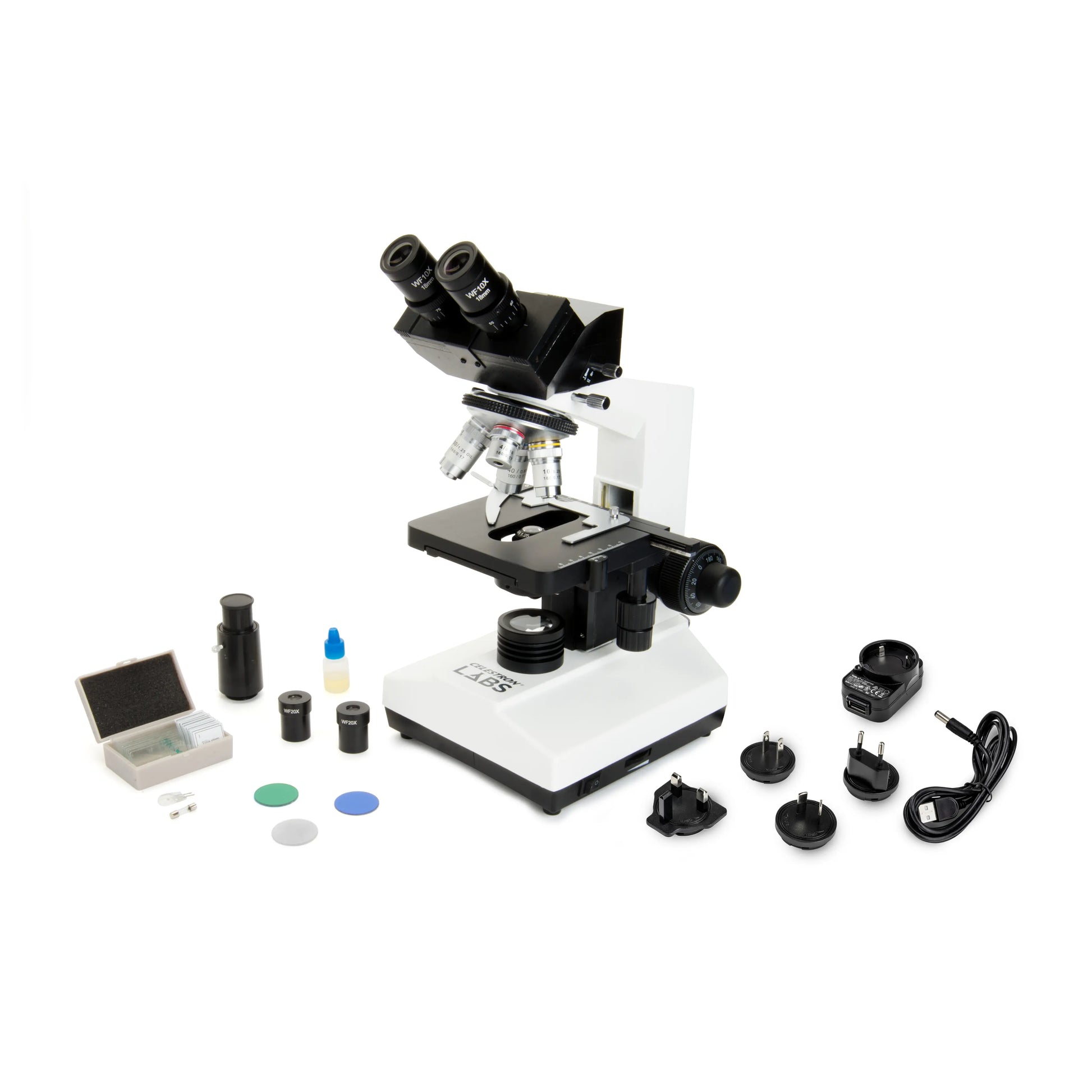

Included Accessories

• 10x and 20x Wide-Field Eyepieces (10x with pointer)

• DIN Objectives: 4x, 10x, 40x, 100x Oil

• Trinocular Adapter Tube

• Universal Power Adapter with Global Plugs (A, C, G, I)

• 3 Colour Filters (Blue, Green, White Opaque)

• Immersion Oil (Type B, Cedar Wood)

• 10 Prepared Slides:

  1. Wall of stomach (section)

  2. Stratified flat epithelium (section)

  3. Testis (section)

  4. Aspergillus (whole mount)

  5. Rhizopus nigricans (whole mount)

  6. Small intestine (cross-section)

  7. Lily anther (cross-section)

  8. Hydrilla verticillata (whole mount)

  9. Spirogyra (whole mount)

  10. Lily ovary (cross-section)

Ideal For

• Laboratory research and diagnostics

• STEM education and university-level science

• Microscopy photography and digital imaging

• Biology and microbiology curriculum support

• Classroom instruction and live demonstrations

Why Choose the Celestron Labs CB2000C?

The CB2000C combines advanced optical performance, durable mechanical design, and digital imaging capability into a professional-grade system. With a trinocular viewing head, mechanical stage, precision LED lighting, and everything you need included in the box, it’s a complete solution for anyone looking to take their microscopy work to the next level.
