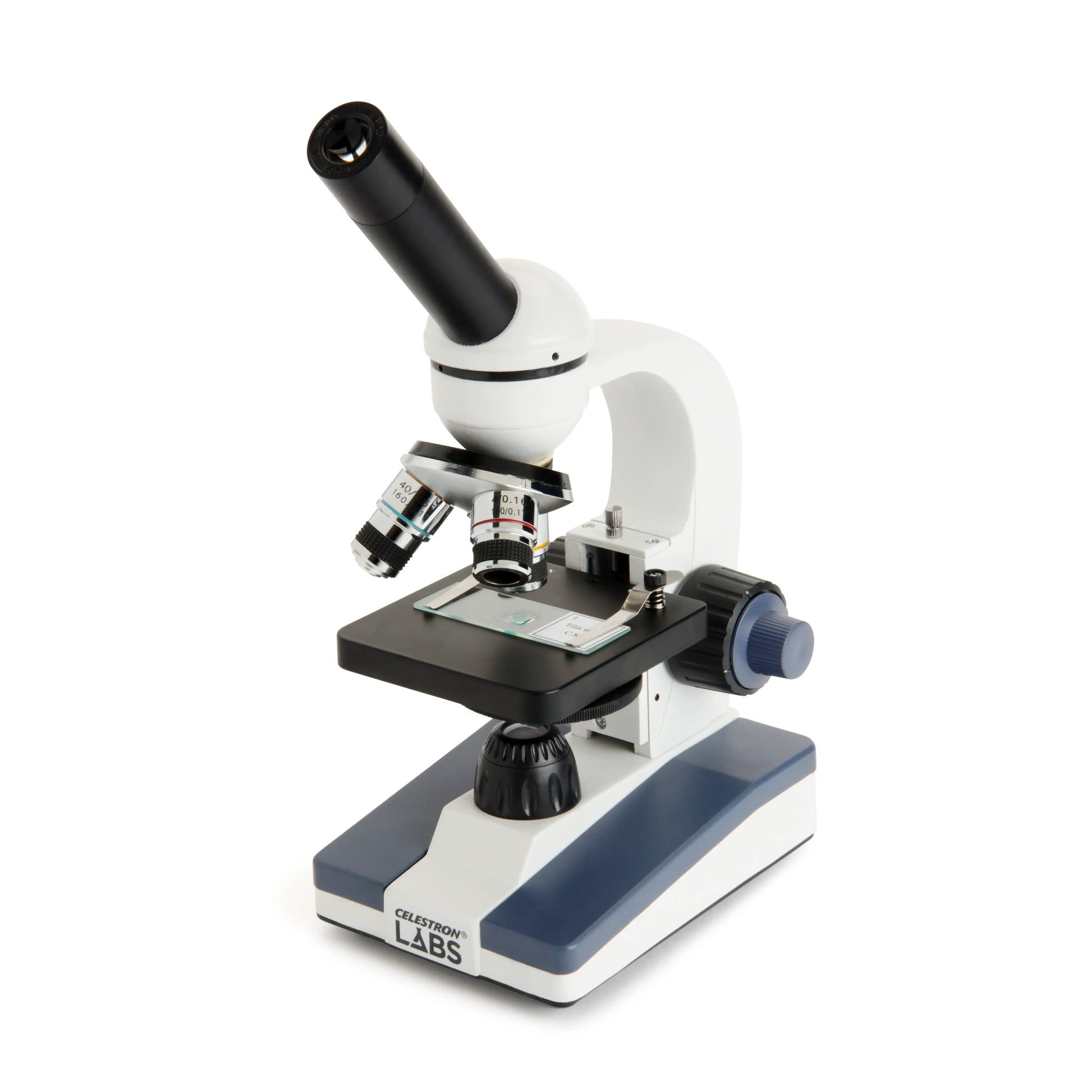

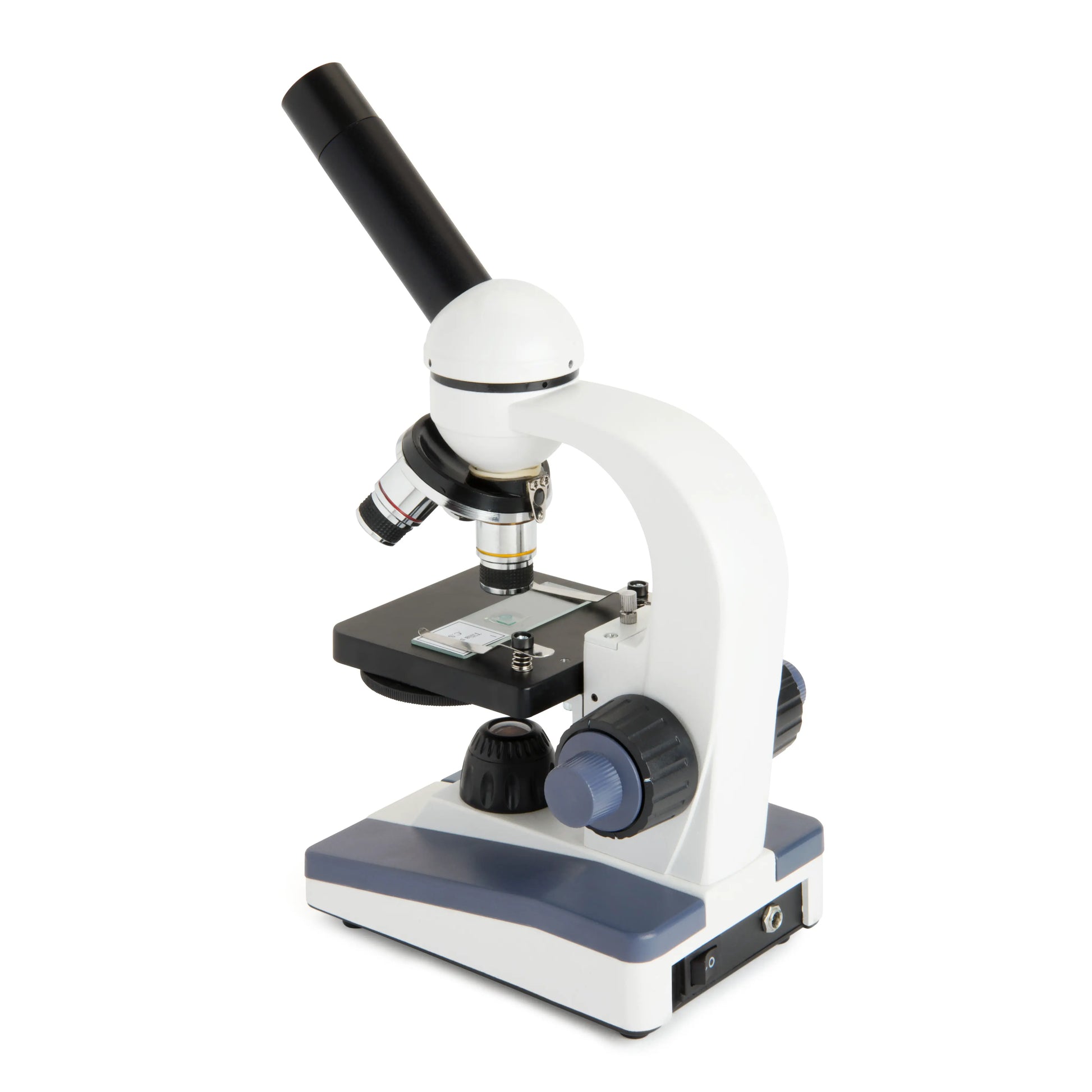

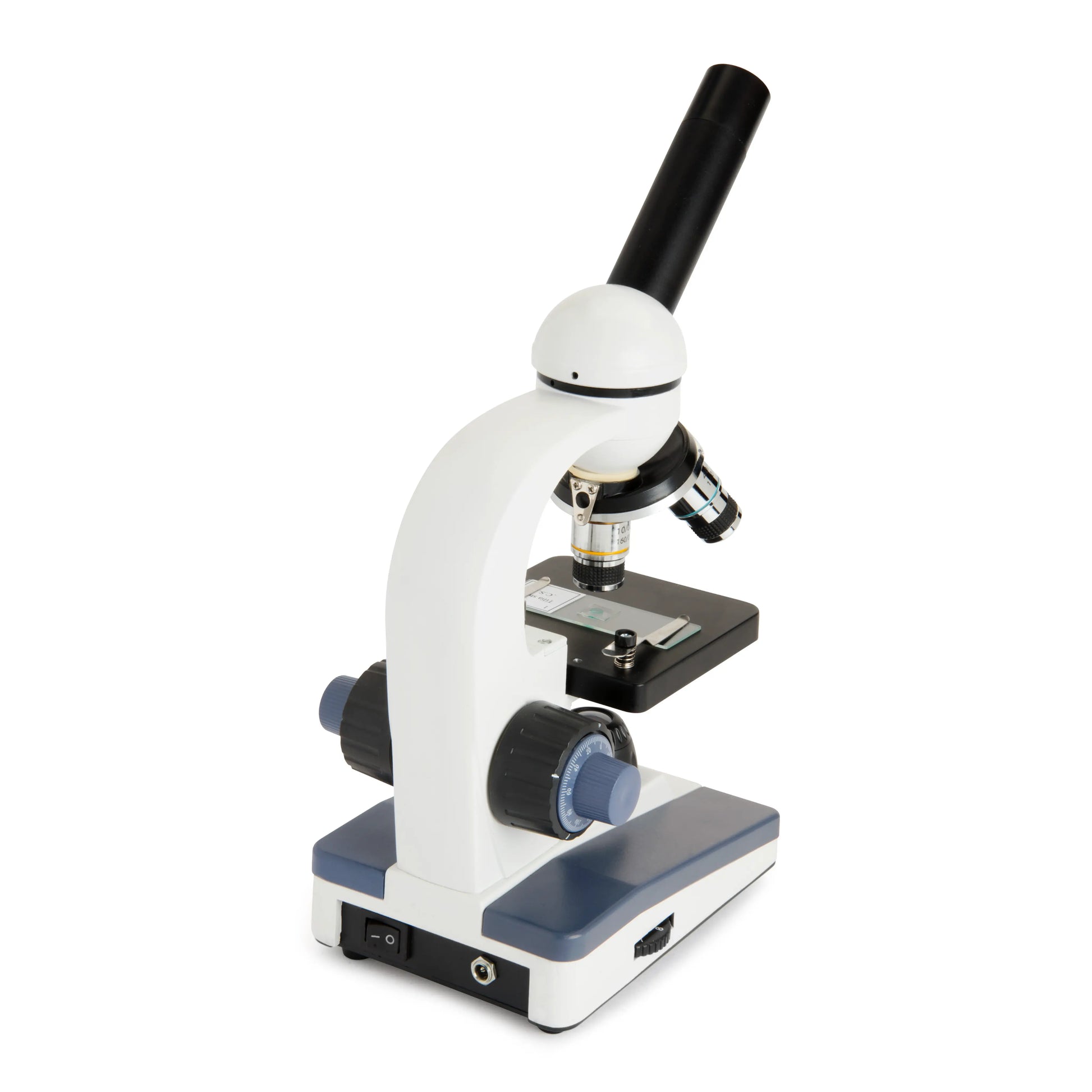

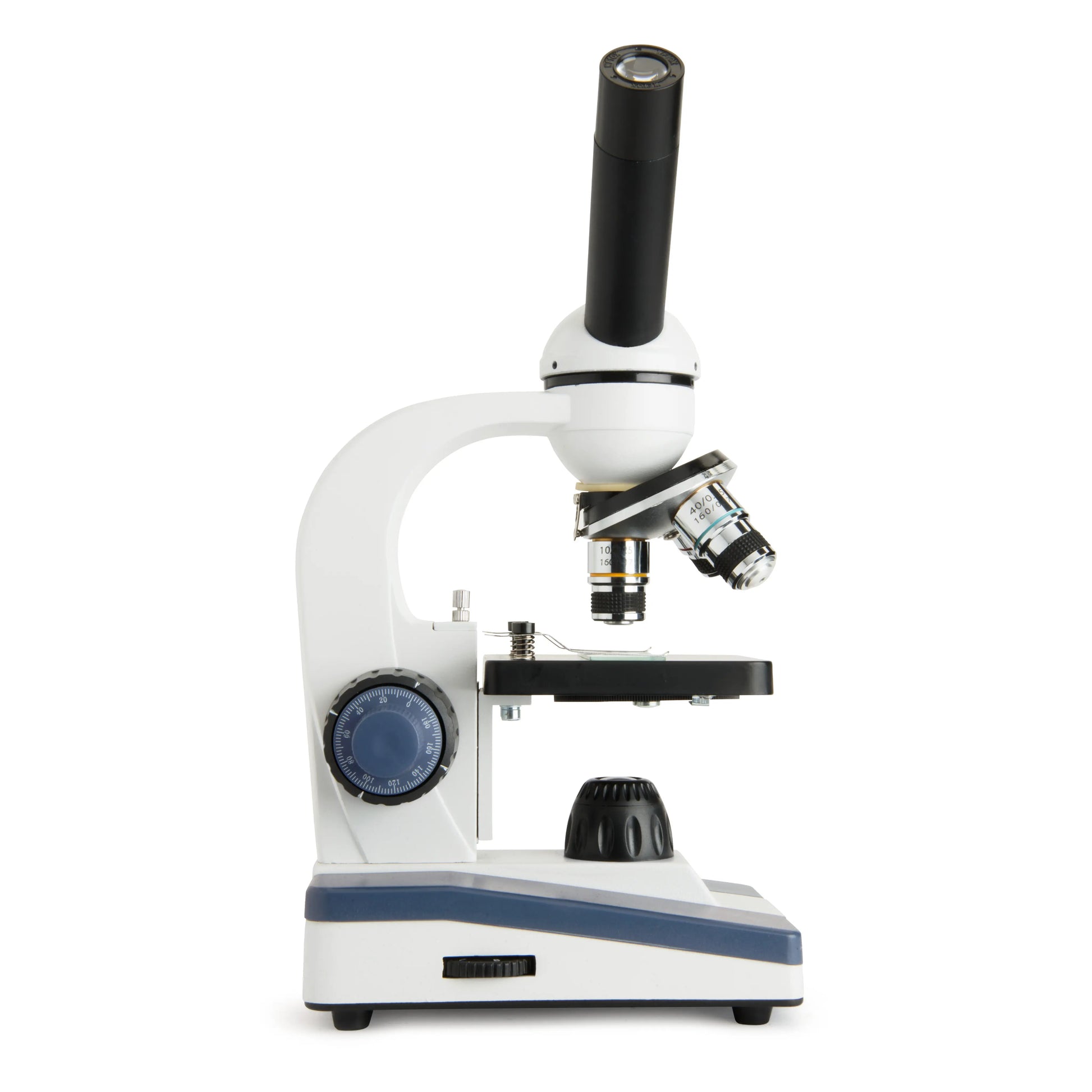

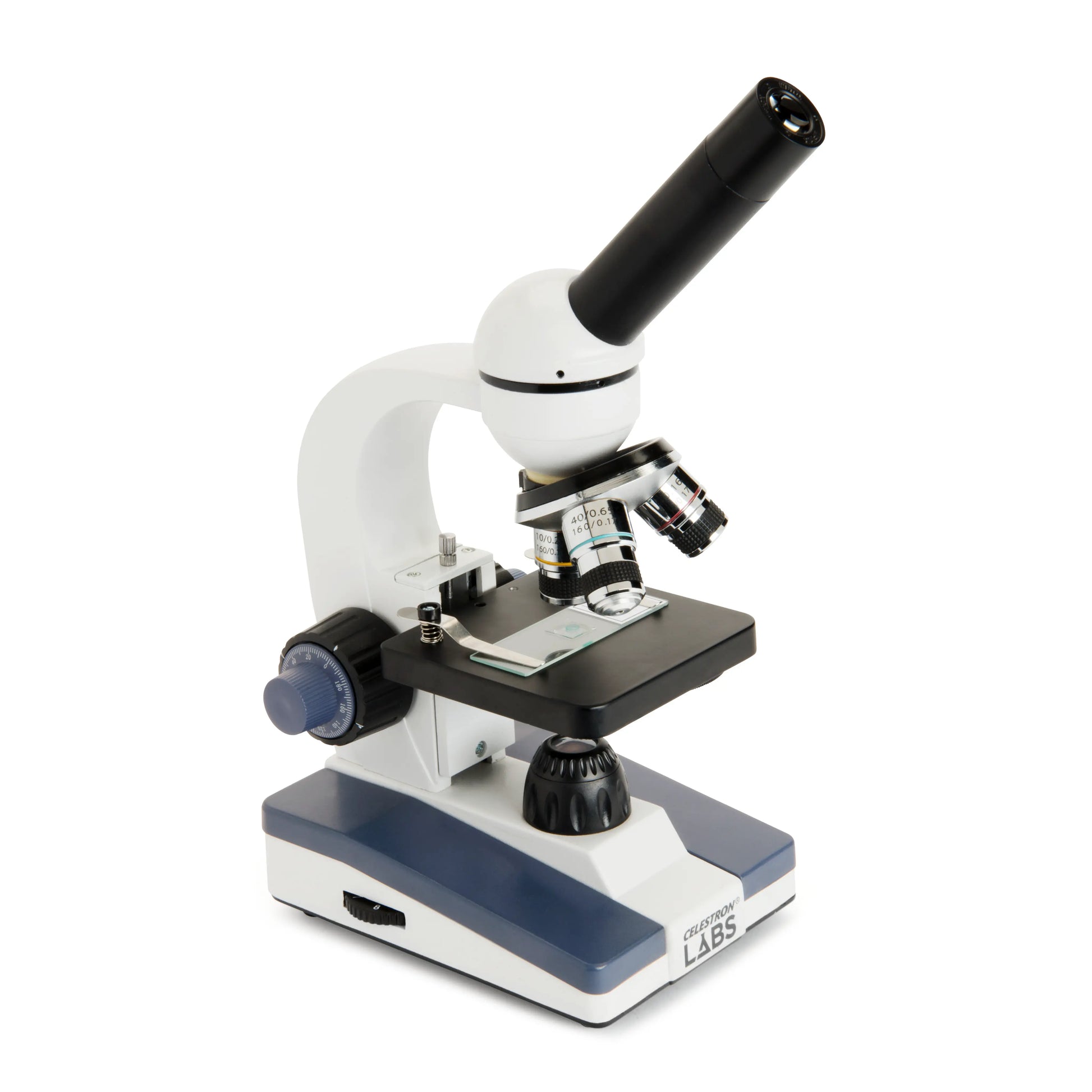

Celestron Labs CM1000C Compound Microscope
Precision Optics and 1000x Power for Lab, Classroom, or Field
The Celestron Labs CM1000C Compound Microscope combines professional-grade features, high magnification, and durable construction—making it an excellent choice for advanced students, educators, hobbyists, and field researchers. With magnification levels up to 1000x, precision coaxial focus controls, and a wide range of included accessories, this microscope is a reliable tool for exploring the microscopic world in vivid detail.
Key Features
Wide Magnification Range up to 1000x

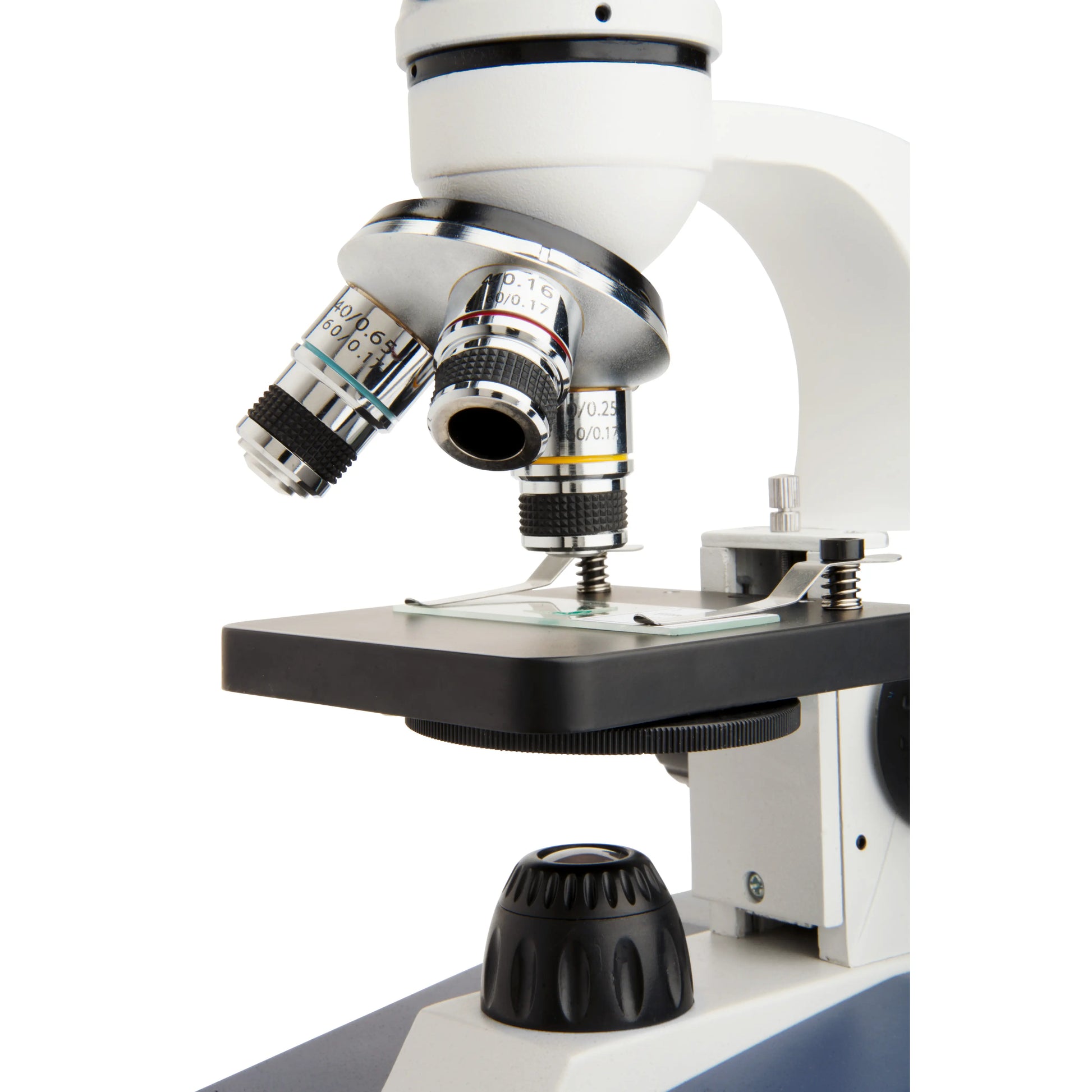

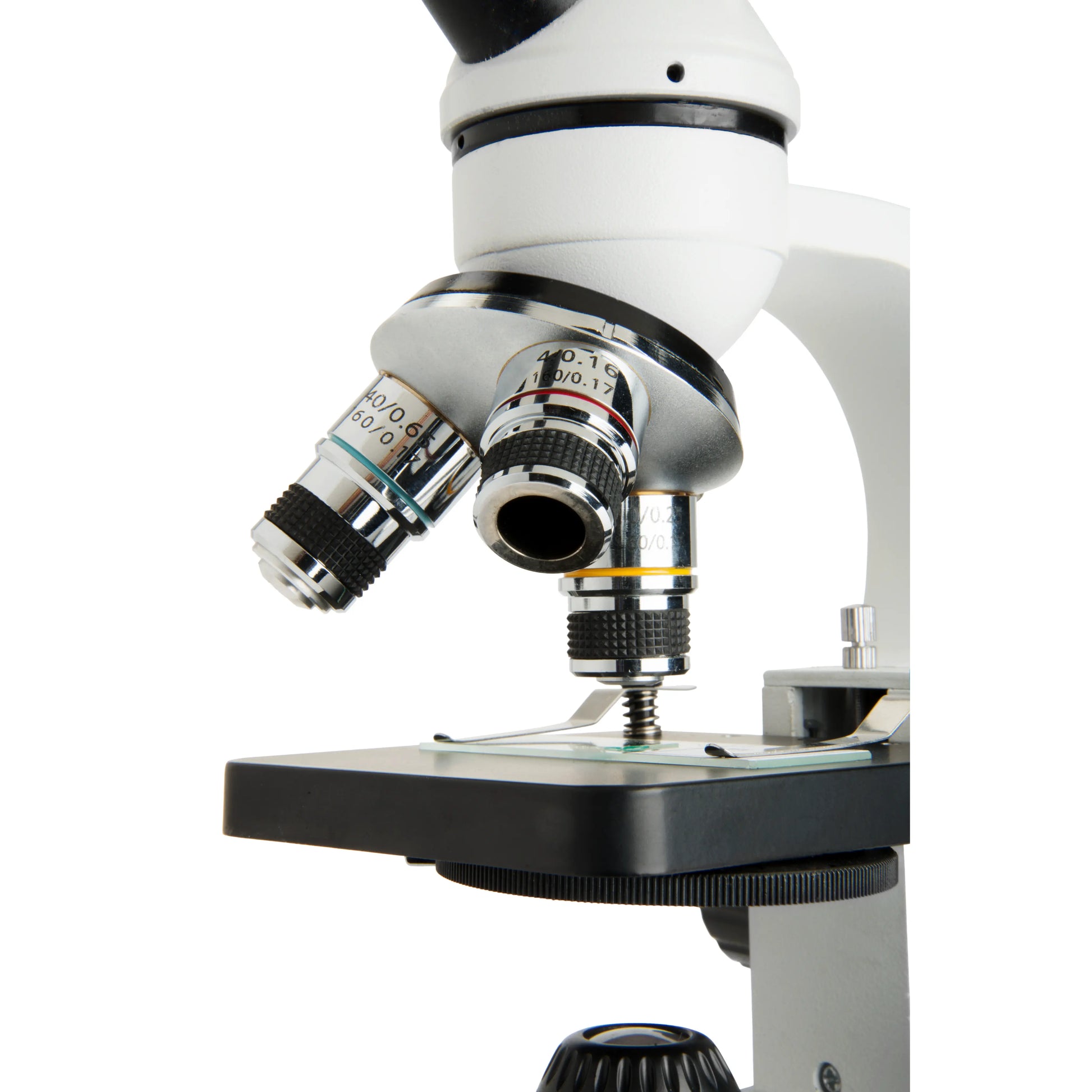

Achieve five different viewing powers—40x, 100x, 250x, 400x, and 1000x—using two wide-field eyepieces (10x and 25x) paired with achromatic objective lenses (4x, 10x, and 40x). Perfect for observing everything from prepared biological slides to fresh specimens collected in the field.
Dual Coarse and Fine Focus Control

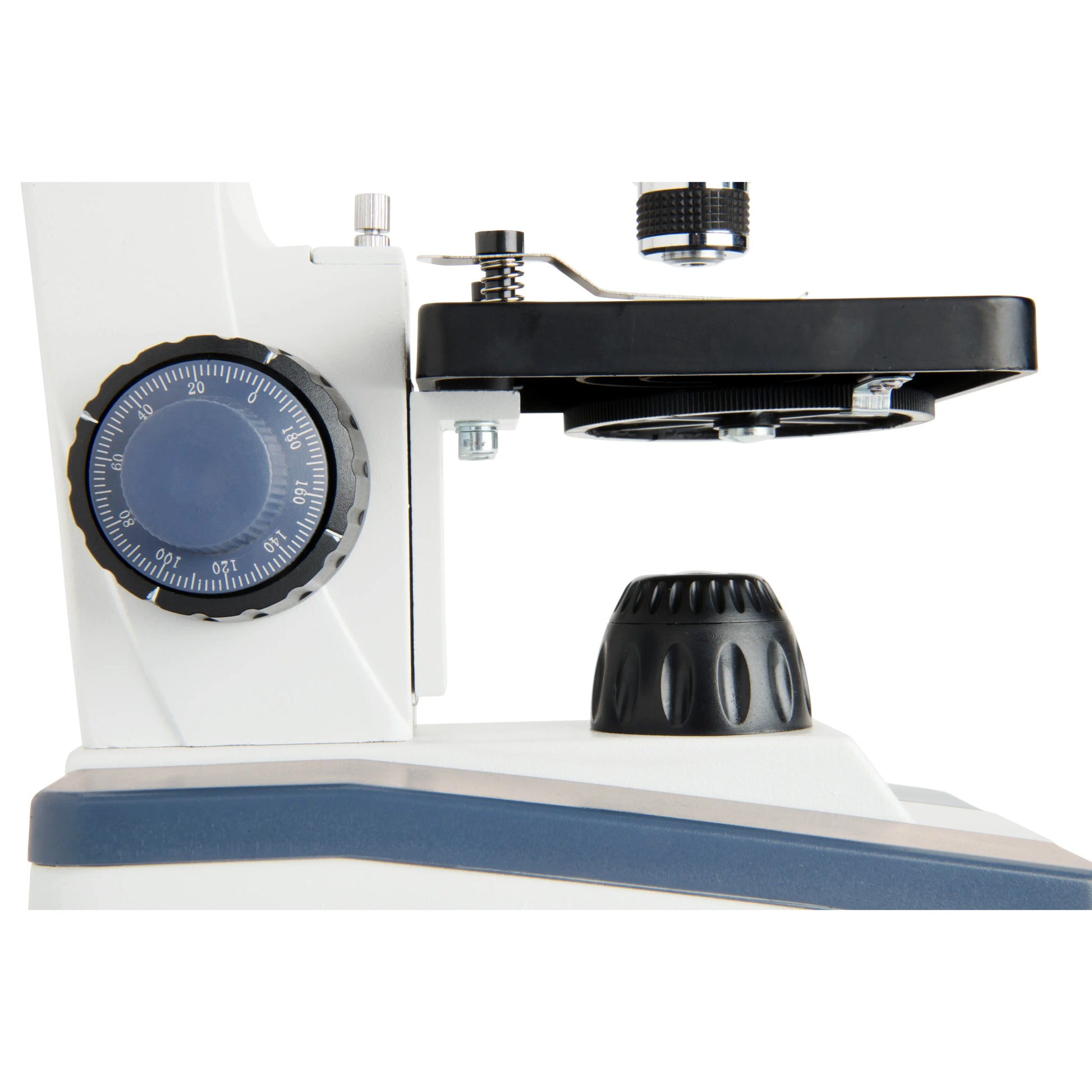

The coaxial focus system offers both coarse and fine focusing knobs on a single control axis for precise and intuitive specimen adjustment. Fine focus resolution of 0.1mm per rotation makes it easy to bring even minute structures into sharp focus.
LED Illumination with Adjustable Brightness
A built-in lower LED light provides cool, consistent illumination ideal for translucent samples. Brightness is controlled by a manual dial, ensuring optimal contrast and visibility.
All-Metal Construction
The sturdy, all-metal frame offers exceptional durability and stability, ideal for regular use in labs, classrooms, or on-the-go environments.
360° Rotating Monocular Head
The monocular head is inclined at 45° for comfortable viewing and fully rotatable, allowing multiple users to share the same specimen without moving the microscope.

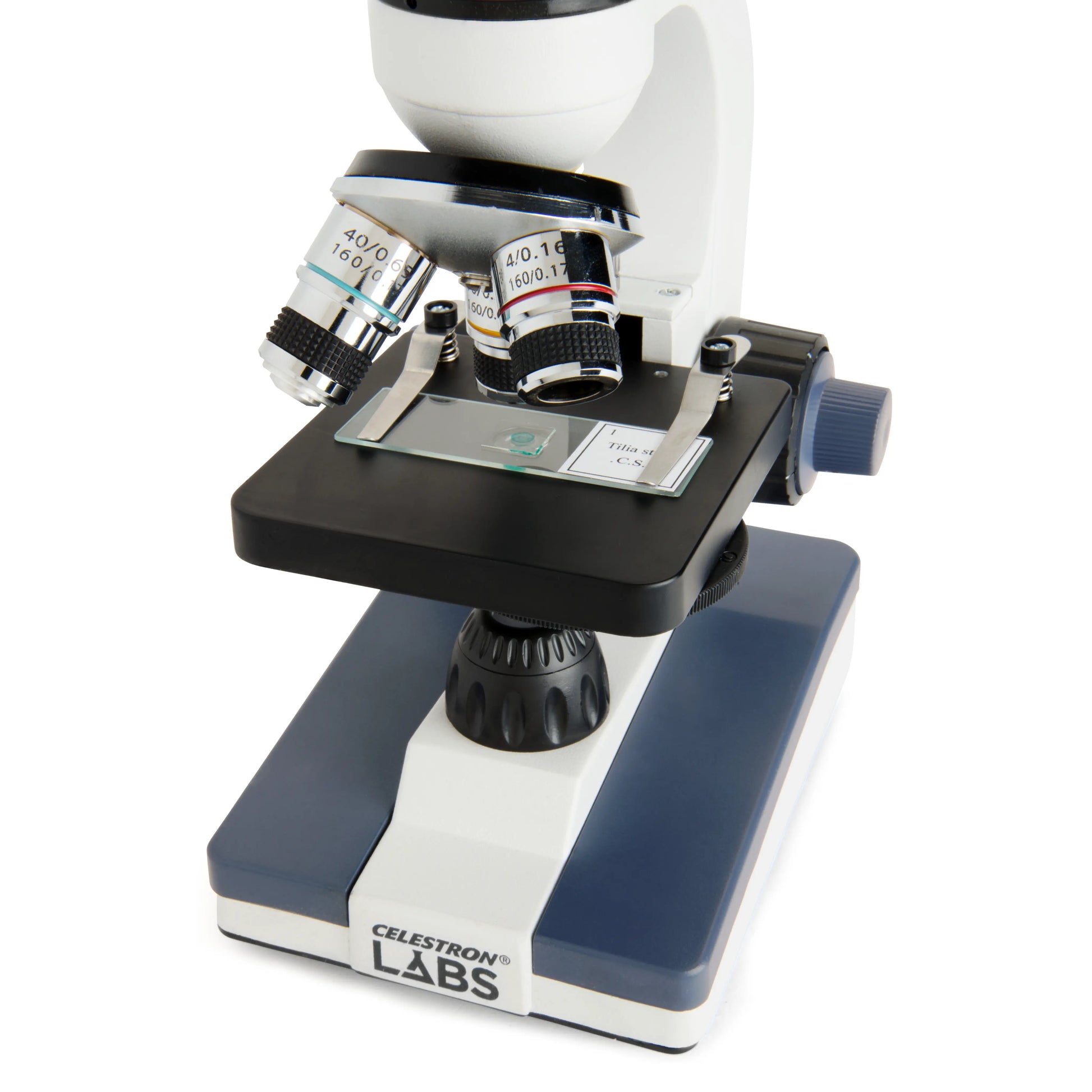

Slide Stage with Clip Holders
The 88mm x 88mm stage includes metal clips to hold slides securely in place during observation. A rotating disc diaphragm with six apertures allows for controlled adjustment of light levels and contrast.
Flexible Power Options
Use the included universal AC adapter with global plug types (A, C, G, I) or switch to battery power (3x AA included) for fieldwork and portable use.
Prepared Slides Included
Explore immediately with 10 professionally prepared slides, offering a variety of biological samples for immediate observation and discovery.
Technical Specifications
| Feature |
Specification |
| Microscope Type |
Compound |
| Head |
Monocular, 360° rotatable, 45° inclined |
| Eyepieces |
WF 10x and WF 25x (23.2mm diameter) |
| Objectives |
Achromatic 4x, 10x, 40x |
| Nosepiece |
Triple, rotating |
| Magnification Range |
40x, 100x, 250x, 400x, 1000x |
| Focus Type |
Coaxial coarse and fine focus |
| Fine Focus Travel |
0.1mm per rotation |
| Illumination |
LED (lower), brightness adjustable |
| Power Options |
AC 100–240V adapter or 3x AA batteries |
| Stage |
Plain, 88mm x 88mm with slide clips |
| Condenser |
None; rotating disc diaphragm with 6 apertures |
| Condenser N.A. |
1.25 |
| Weight & Dimensions |
- Not specified |

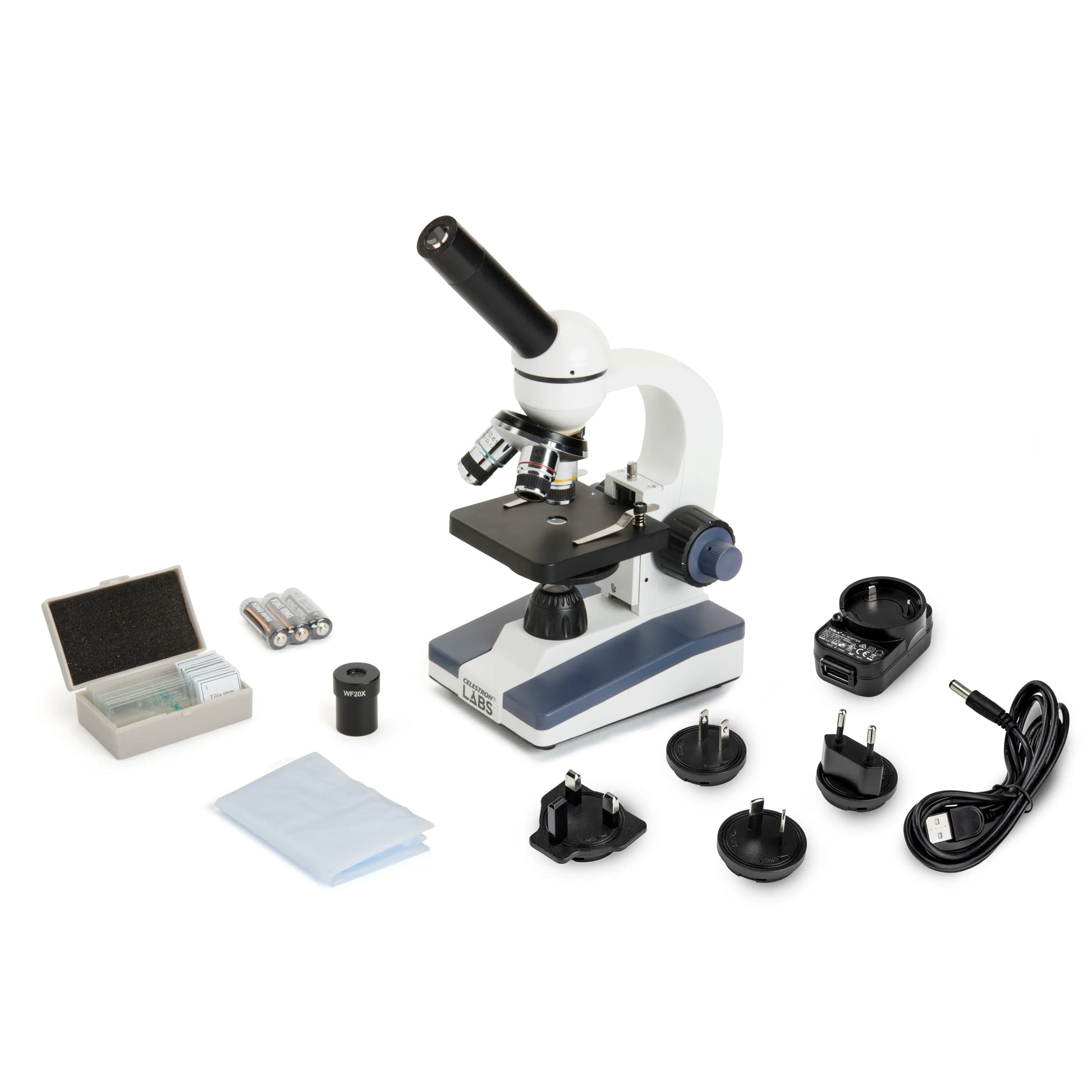

Included Accessories
-
WF 10x and 25x Eyepieces
-
3 Achromatic Objectives (4x, 10x, 40x)
-
Universal AC Adapter with International Plug Set
-
3 AA Batteries
-
10 Prepared Slides
Ideal For
-
Advanced biology education (secondary and post-secondary levels)
-
Laboratory use in schools or institutions
-
Home STEM learning and hobby microscopy
-
Field studies and portable science experiments
Why Choose the Celestron Labs CM1000C?
The CM1000C Compound Microscope delivers a powerful combination of high magnification, precise control, and robust construction—perfect for users who want to study cells, microorganisms, and fine structures in stunning detail. With dual eyepieces, refined focus, and everything needed to start observing immediately, this model offers exceptional value for budding scientists and serious enthusiasts alike.
