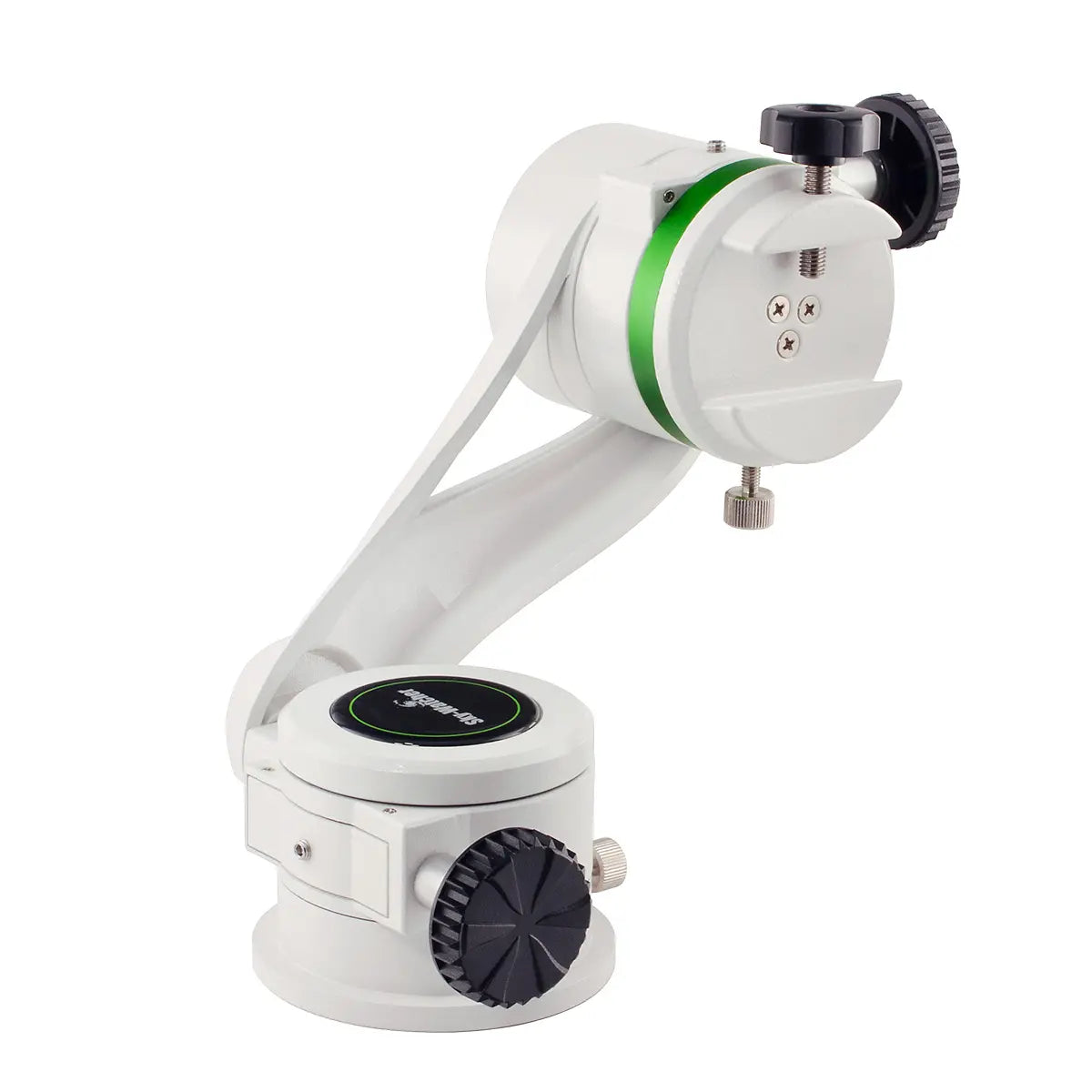

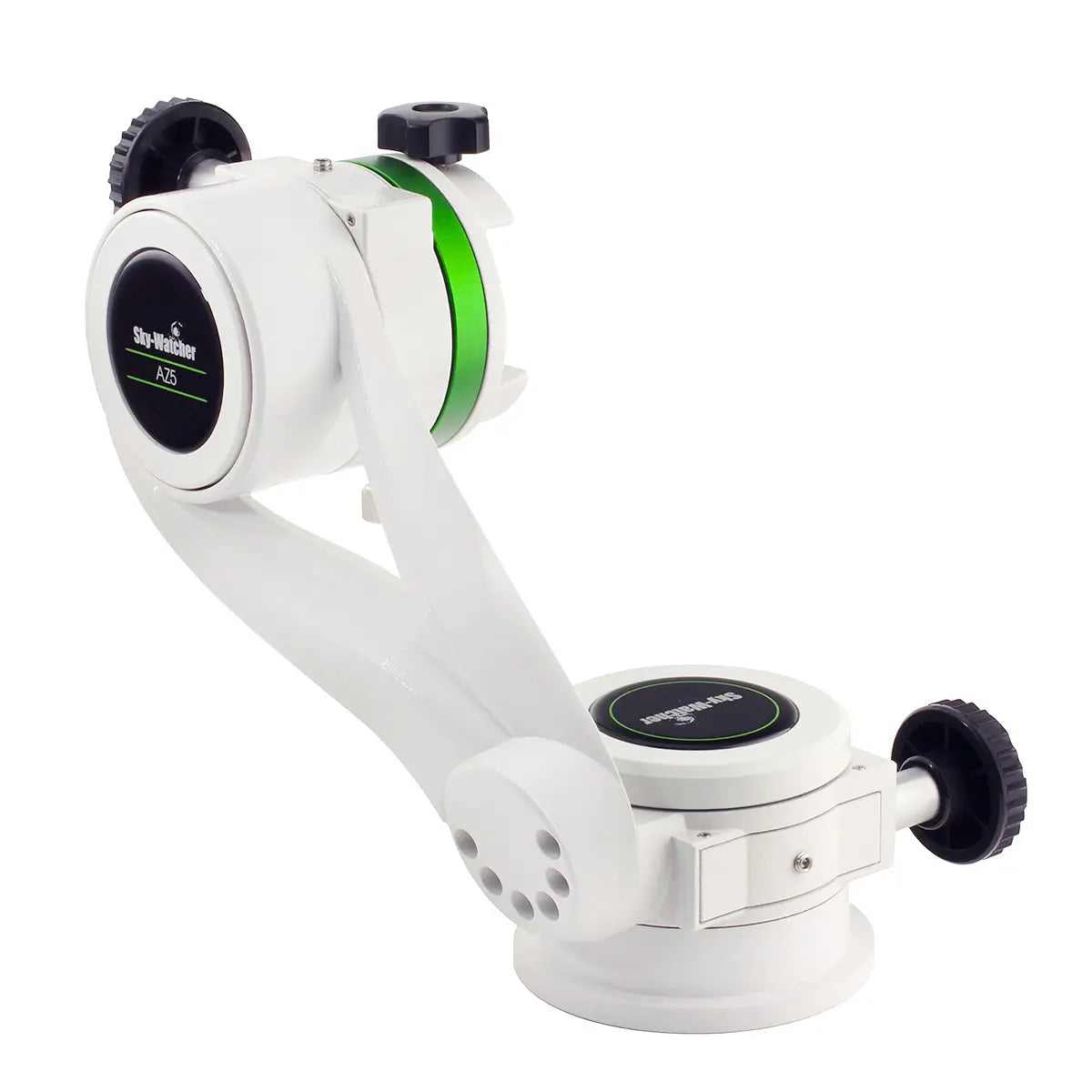

Sky-Watcher AZ5 Deluxe Alt-Azimuth Telescope Mount Head

Sky-Watcher AZ5 Deluxe Alt-Azimuth Telescope Mount Head — 20312

The Sky-Watcher AZ5 Deluxe Alt-Azimuth Mount Head is a robust, easy-to-use “grab-and-go” solution for visual astronomy and daytime terrestrial viewing. Lightweight yet sturdy, it delivers smooth, precise manual control — ideal for observers who want a simple, reliable mount without the complexity of motors or electronics.

Designed to carry small telescopes and spotting scopes up to 5kg, the AZ5 is perfect for refractors, Maksutov-Cassegrains and compact imaging scopes. Whether you’re scanning the Moon, following a planet across the sky, or enjoying wildlife and distant landscapes by day, this mount offers excellent stability and effortless movement.

Key features at a glance

• Simple, no-fuss alt-azimuth design

• Slow-motion controls on both axes for smooth, precise tracking

• Fits any tripod with a standard 3/8" connection

• Supports payloads up to 5kg

• Cast aluminium construction for strength and durability

• Compatible with 45mm Sky-Watcher / Vixen-style dovetail bars

• Optional L-bracket available separately for binoculars or other optical equipment

Smooth, controlled movement

The AZ5 Deluxe is fitted with flexible slow-motion control cables on both the altitude (up-down) and azimuth (left-right) axes. These allow you to make fine, accurate adjustments — ideal when observing the Moon, planets or double stars at higher magnifications.

For quick repositioning, the mount can also be moved freely by hand, letting you sweep across the sky or pan across a landscape in seconds.

Strong, stable and portable

Constructed from cast aluminium, the AZ5 offers an excellent balance of strength and portability. At only 2.3kg, it’s easy to carry and quick to set up, making it perfect for:

• Garden observing

• Travel and holidays

• Outreach events and quick sessions

• Daytime spotting and birdwatching

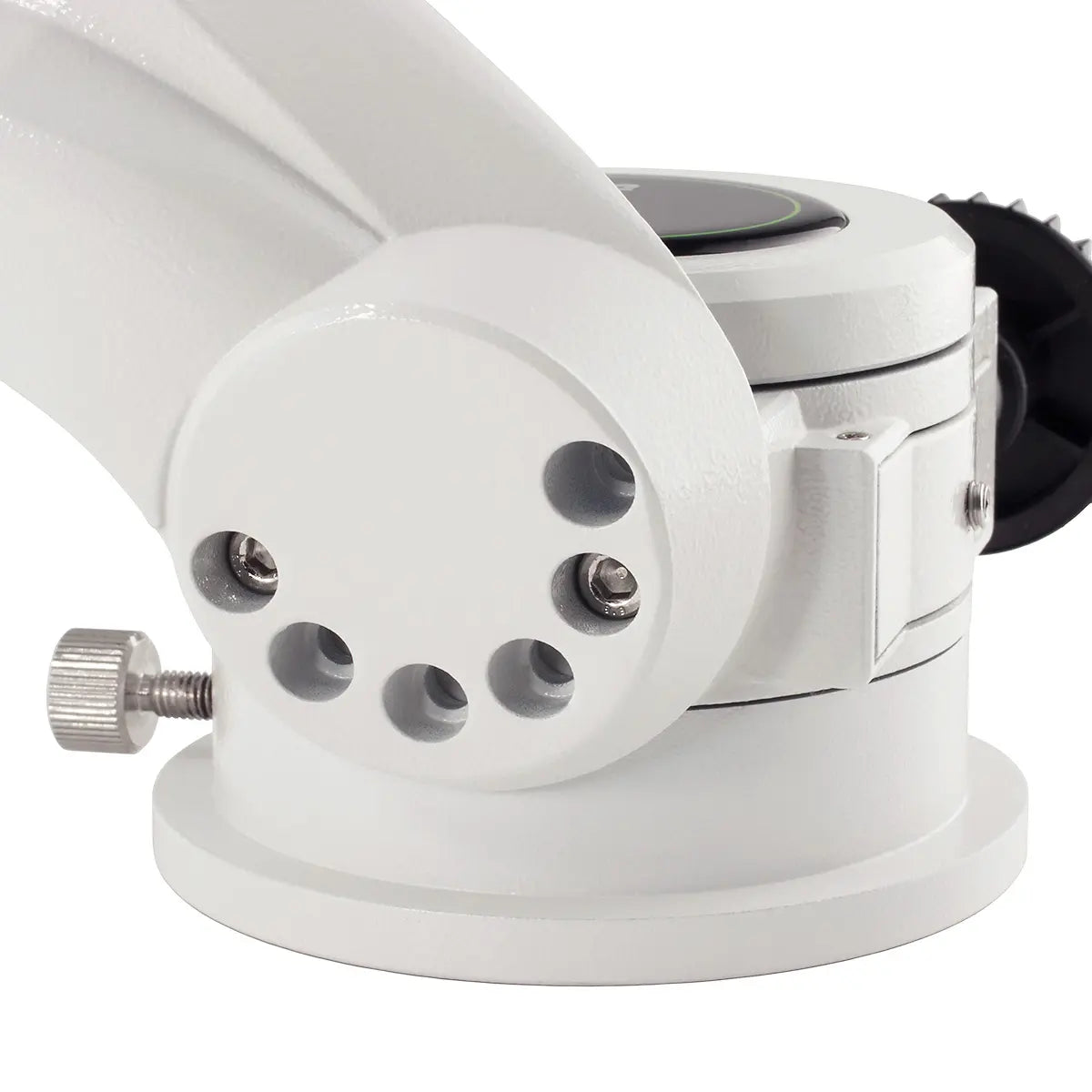

The adjustable fork arm provides two positions, allowing improved clearance for longer telescope tubes and more comfortable viewing angles.

Versatile mounting options

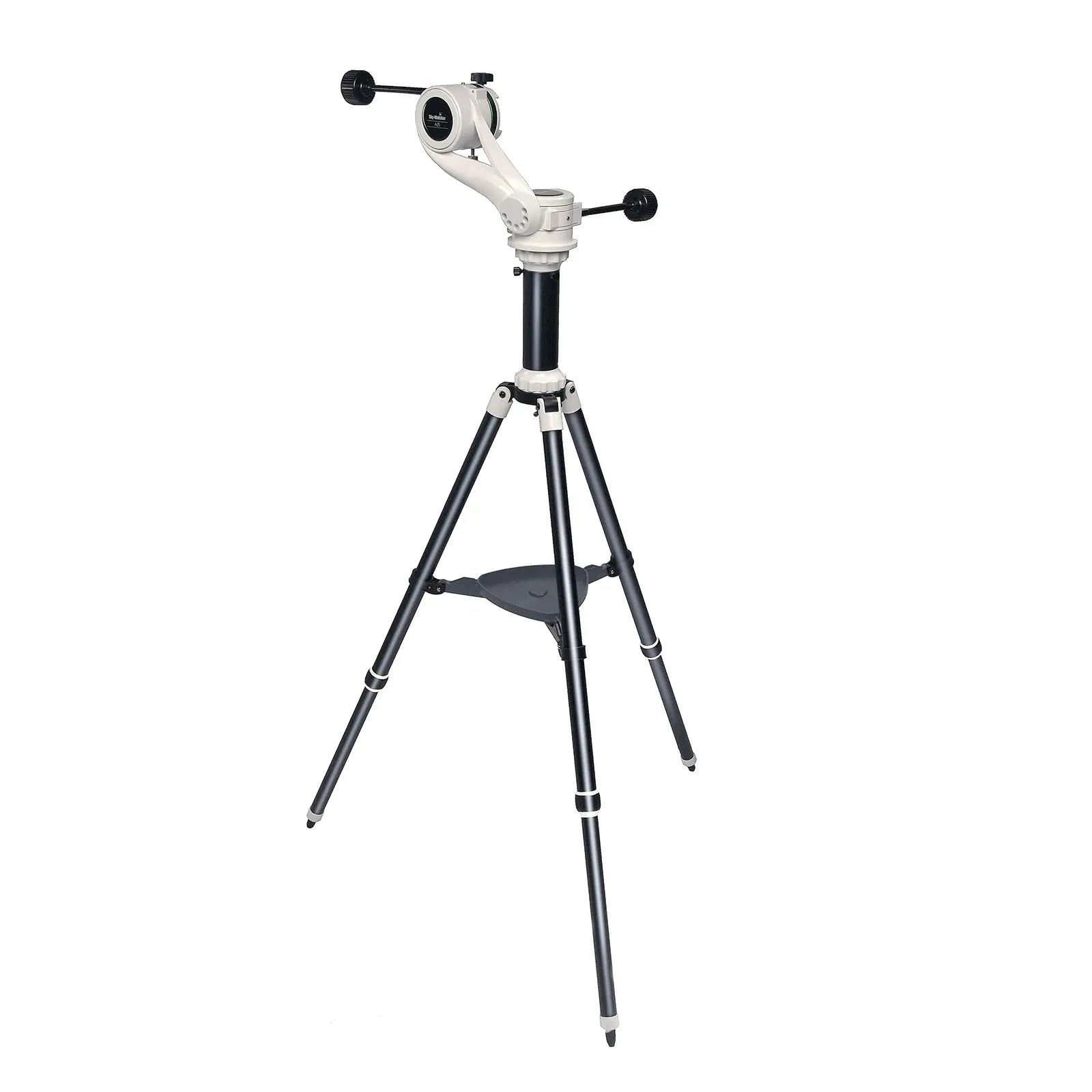

The AZ5 Deluxe attaches to most photographic and astronomy tripods using its standard 3/8" threaded fitting, making it highly versatile. The 45mm dovetail saddle securely holds compatible telescopes, while the optional L-bracket (sold separately) allows mounting of alternative instruments such as binoculars and spotting scopes.

Technical specifications

• Drive system: Helical worm gear, 96-tooth – Alt & AZ axes

• Rotation (Azimuth): 360° continuous

• Elevation (Altitude): −50° to +90°

• Payload capacity: 5kg

• Altitude fork arm: Two-position adjustable

• Dovetail saddle: 45mm Sky-Watcher / Vixen style

• Slow-motion controls: 2 × flexible cables (Alt & AZ)

• Tripod connection: 3/8" threaded

• Total weight: 2.3kg

The Sky-Watcher AZ5 Deluxe Alt-Azimuth Mount Head is an excellent upgrade for anyone seeking a smooth, intuitive and portable mount for visual observing — dependable, travel-friendly and ready for both night-time astronomy and daytime terrestrial use.
