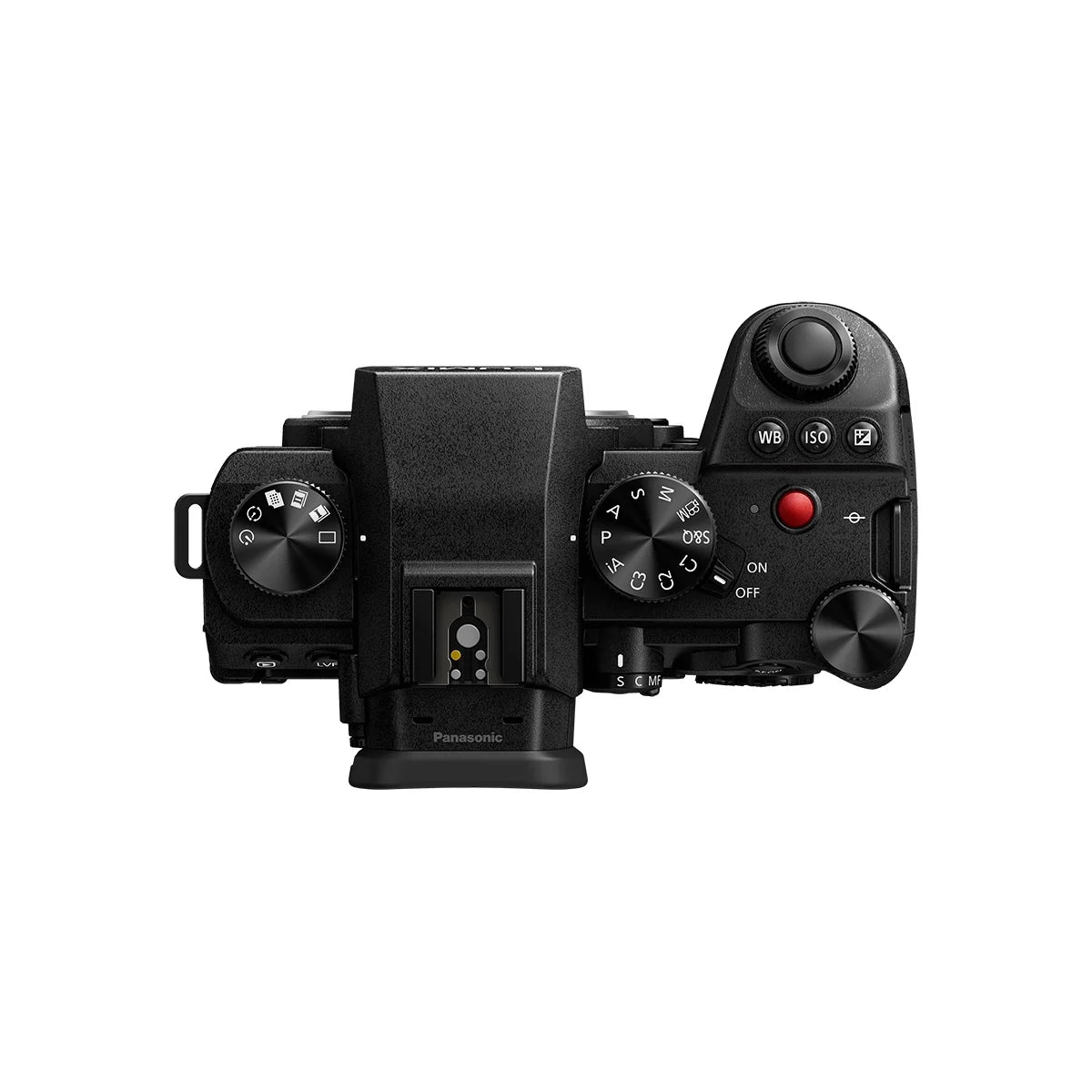

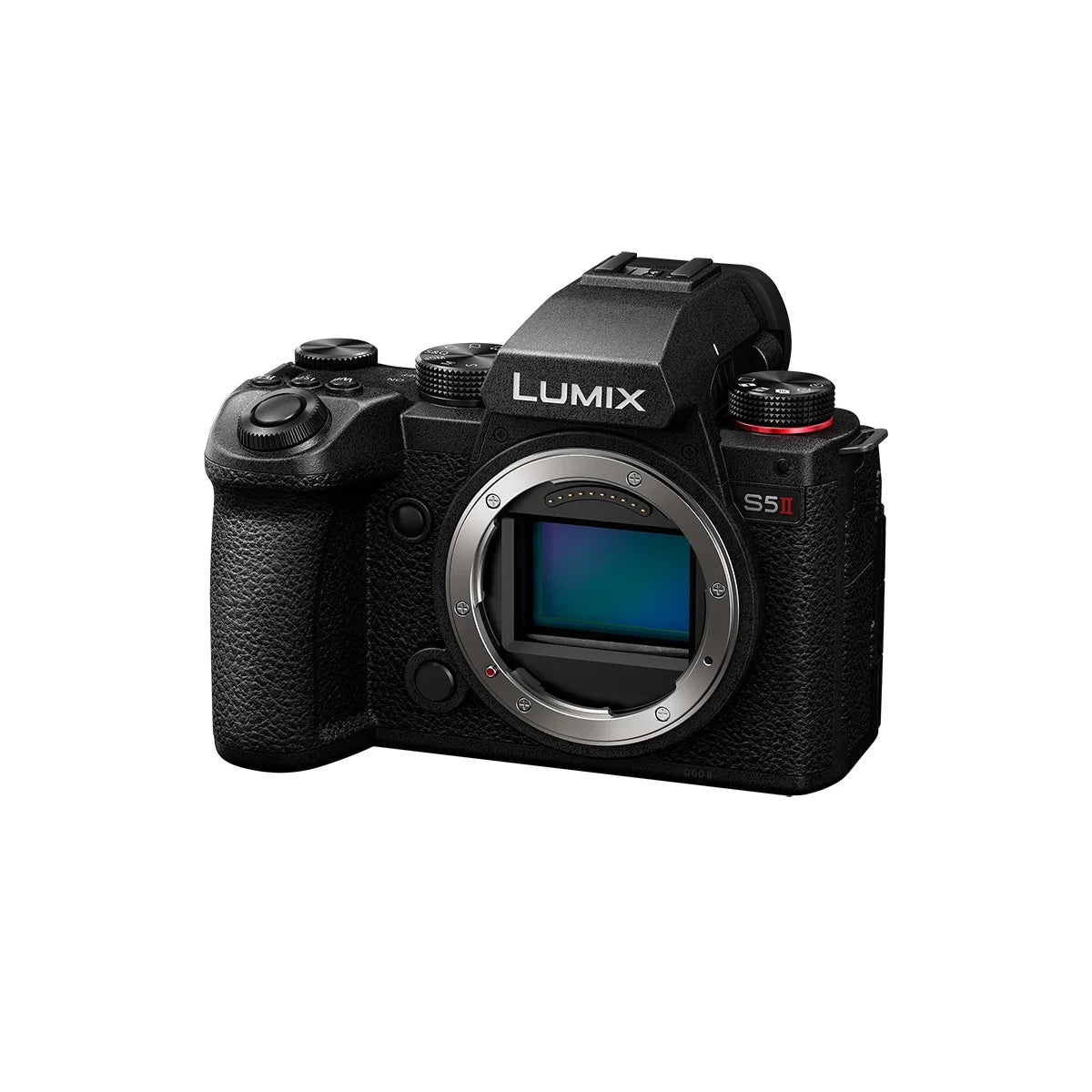

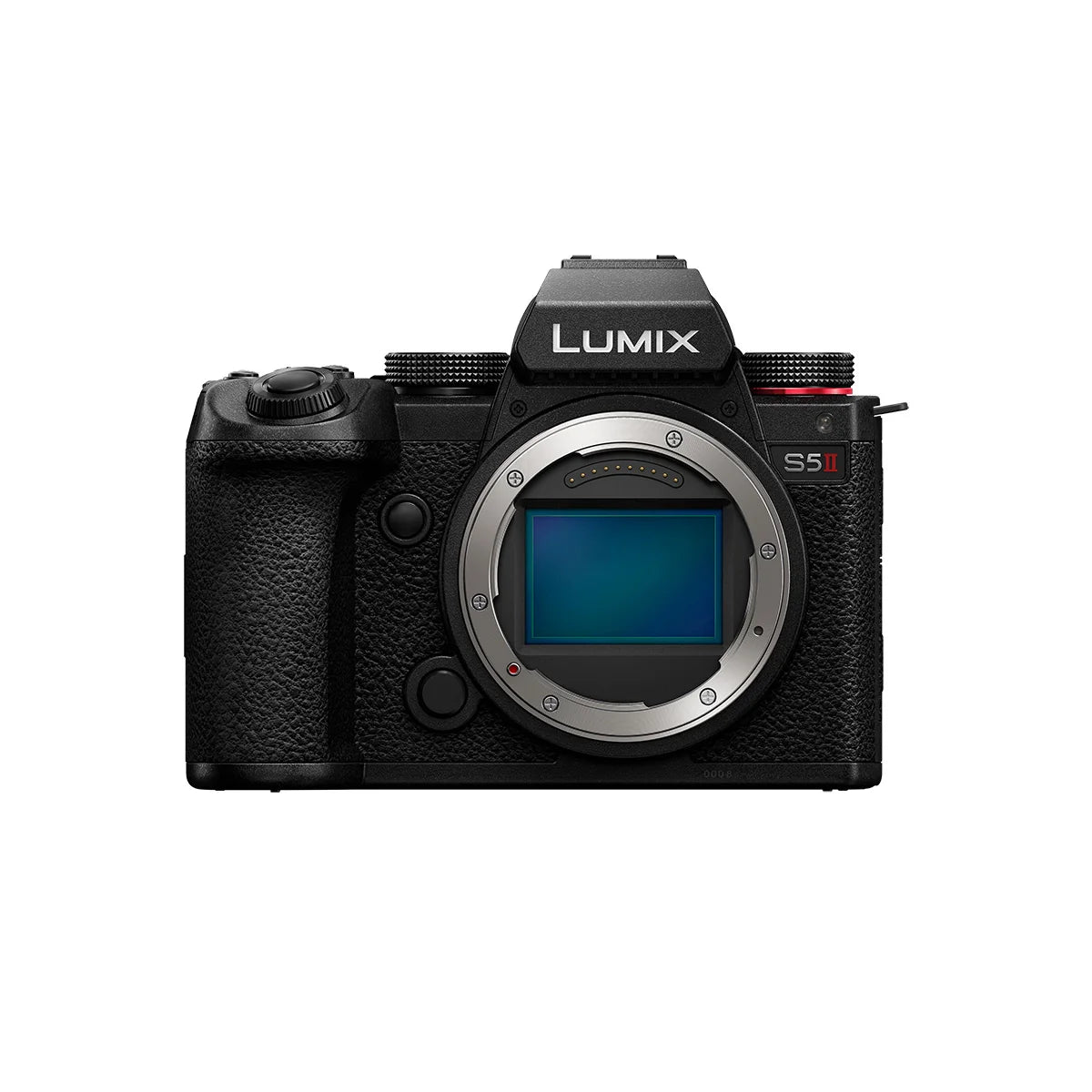

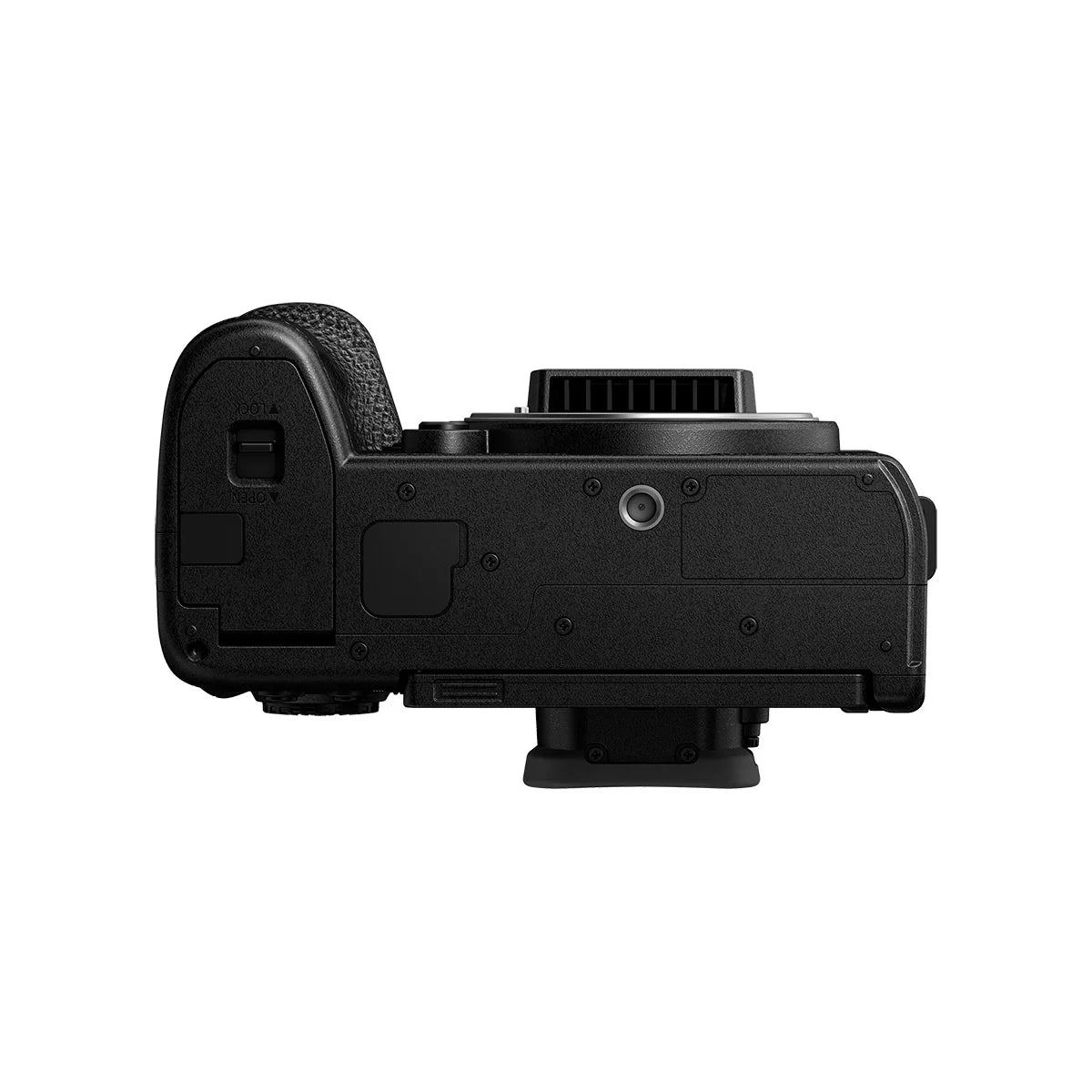

Panasonic Lumix S5 II Full Frame Camera Body

Panasonic Lumix S5 II Full-Frame Mirrorless Camera Body

Powerful Hybrid Performance for Astrophotography

The Panasonic Lumix S5 II is a versatile full-frame mirrorless camera combining excellent low-light image quality, advanced image stabilisation and professional video features in a compact, weather-resistant body.

Its 24.2MP full-frame sensor, Phase Hybrid autofocus system, vari-angle touchscreen and effective heat-management system make it an excellent choice for Milky Way photography, nightscapes, star trails, time-lapse sequences and astronomy filmmaking.

Key Features

24.2MP Full-Frame CMOS Sensor

The Lumix S5 II features a 24.2MP full-frame CMOS sensor designed to deliver detailed images with excellent dynamic range and dependable low-light performance.

Its full-frame format is particularly well suited to wide-field astrophotography. When paired with a suitable fast, wide-angle lens, the camera can capture expansive views of the Milky Way, constellations and landscapes beneath the night sky.

The resolution provides an excellent balance between image detail, manageable file sizes and high-ISO performance.

Dual Native ISO Technology

Dual Native ISO technology helps the S5 II maintain image quality while reducing visible noise at higher sensitivity settings.

This is particularly valuable for astrophotography, where higher ISO settings are often required to reveal faint stars during relatively short exposures. It also benefits low-light video recording and photography around observatories or dark-sky locations.

Phase Hybrid Autofocus

The S5 II features Panasonic’s Phase Hybrid autofocus system, combining phase-detection and contrast-detection technologies across 779 selectable areas.

It provides fast, dependable subject detection and tracking for photography and video, including in challenging lighting conditions. For stars and telescope-based imaging, magnified manual focus will normally deliver the most precise results.

Lumix L-Mount Lens Compatibility

The L-Mount system provides access to an extensive selection of Panasonic Lumix S, Sigma and Leica lenses. This includes fast-aperture primes and ultra-wide-angle lenses suited to Milky Way photography and astronomical landscapes.

With an appropriate L-Mount T-ring and adapter, the S5 II can also be connected to compatible telescopes for prime-focus photography.

Five-Axis In-Body Image Stabilisation

The camera’s five-axis in-body image stabilisation helps counteract camera movement during handheld photography and filming.

Active I.S. provides additional correction during video recording, making the S5 II particularly capable when filming handheld at outdoor locations or producing astronomy-related content.

For long-exposure astrophotography, the camera should normally be secured to a sturdy tripod or equatorial tracking mount, with stabilisation switched off when appropriate.

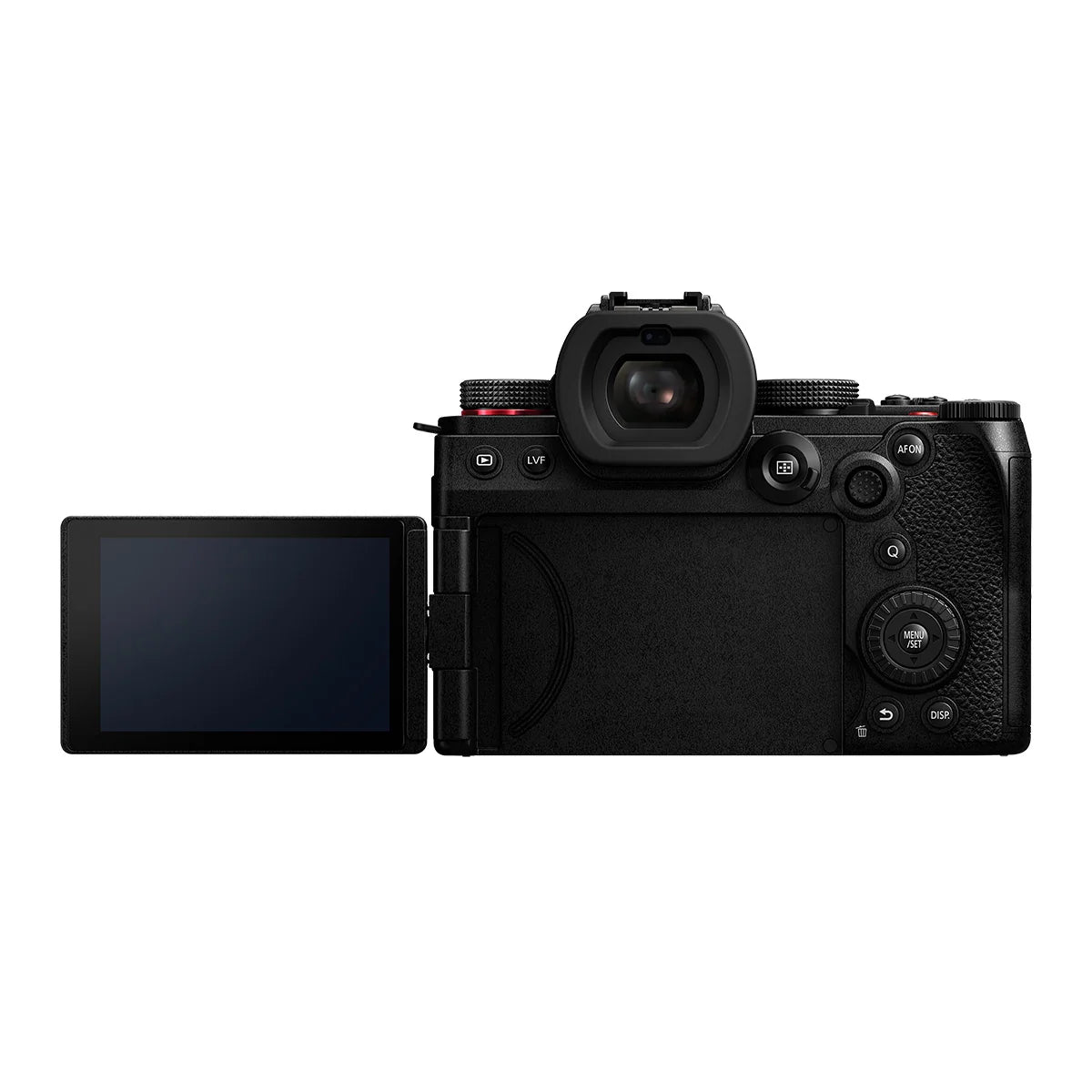

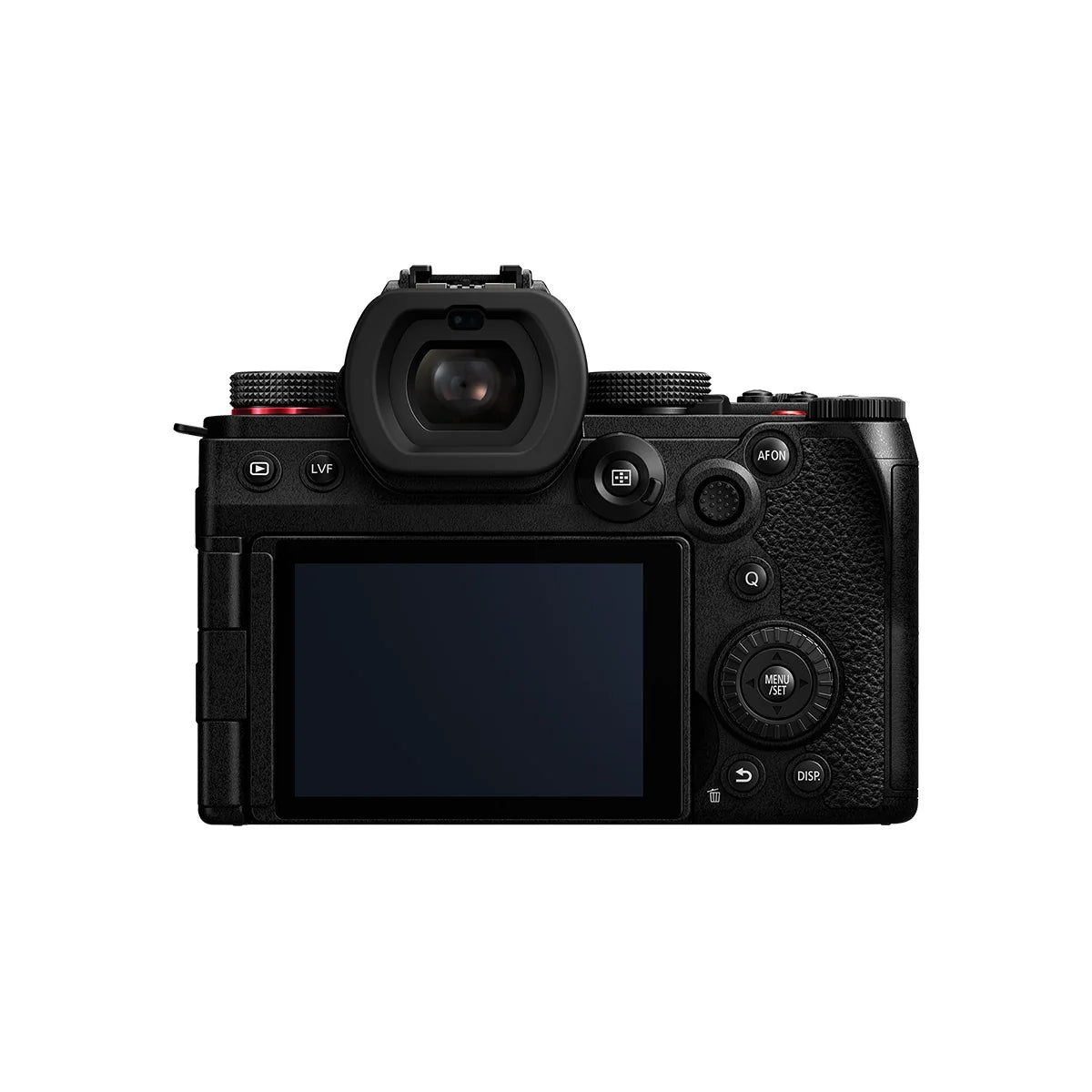

Vari-Angle Touchscreen

The 3-inch free-angle touchscreen can be positioned for comfortable viewing when the camera is pointed towards the sky, mounted close to the ground or connected to a telescope.

Magnified live view and manual-focus assistance make it easier to achieve accurate focus on a bright star, the Moon or another distant astronomical target.

Electronic Viewfinder

The 3.68-million-dot OLED electronic viewfinder provides a clear and detailed view of the composition, exposure settings and captured images.

When working beneath dark skies, reducing the brightness of the viewfinder and rear monitor can help preserve night vision between exposures.

Advanced Imaging Features

96MP High Resolution Mode

The S5 II can use its sensor-shift mechanism to capture and combine multiple exposures into a high-resolution image of approximately 96MP.

This mode is designed for stationary subjects and can record exceptionally fine detail in landscapes, architecture and carefully controlled scenes. Because stars move between exposures, High Resolution Mode is generally unsuitable for conventional untracked astrophotography.

High-Speed Continuous Shooting

The camera can capture images at up to 9fps using the mechanical shutter or up to 30fps with the electronic shutter.

While these speeds are not essential for traditional long-exposure astrophotography, they make the S5 II highly versatile for wildlife, sport, atmospheric phenomena and general photography.

Real-Time LUT

Real-Time LUT allows compatible lookup tables to be loaded into the camera and applied during photography or video recording.

This gives creators greater control over the appearance of their footage in-camera and can help streamline workflows for astronomy videos, educational content and social media production.

Professional Exposure Tools

The S5 II includes advanced monitoring tools such as Waveform Monitor, Vector Scope, Zebra Pattern and Synchro Scan.

These features help filmmakers evaluate exposure, colour and flicker accurately when recording observatories, presentations, illuminated foregrounds or night-time scenes.

Professional Video Capabilities

Internal 6K 10-Bit Recording

The Lumix S5 II can record 6K 3:2 and 5.9K 16:9 video at up to 30p, providing detailed footage with extensive flexibility for cropping and reframing during editing.

The open-gate 3:2 recording option is particularly useful for creators producing content for several platforms, as one recording can be reframed for horizontal, square or vertical delivery.

4K 60p Video

The camera records 4K video at up to 60p with 10-bit colour. Recording at 50p or 60p uses an APS-C-sized crop, resulting in a narrower field of view.

This should be considered when selecting a lens for wide-field night-sky video or astronomical landscapes.

V-Log and V-Gamut

V-Log and V-Gamut provide more than 14 stops of dynamic range under supported conditions, allowing experienced filmmakers to retain greater highlight and shadow detail for colour grading.

This is especially useful for scenes combining illuminated foreground subjects with a significantly darker night sky.

Effective Heat Management

An integrated cooling fan and carefully designed heat-dissipation system support extended video recording across a wide range of modes.

This makes the S5 II particularly suitable for long interviews, astronomy presentations, time-lapse projects and extended filming sessions. Available recording duration can still vary according to the selected format, operating conditions and camera settings.

High-Frame-Rate Recording

Full HD video can be recorded at high frame rates of up to 120fps, allowing fast action to be slowed down during editing.

This expands the camera’s versatility for creative filmmaking, wildlife and atmospheric subjects alongside conventional night-sky recording.

Professional Audio Support

The S5 II supports 48kHz/24-bit audio recording using its built-in or compatible external microphones.

Higher-resolution 96kHz/24-bit recording is also available when using a compatible Panasonic XLR microphone adapter, providing greater flexibility for interviews, presentations and professional video production.

Practical Astrophotography Features

Long-Exposure Photography

The S5 II provides manual and bulb exposure controls for photographing faint celestial subjects and creating extended night-sky exposures.

For the sharpest results, the camera should be mounted securely and triggered using its self-timer, a compatible remote release or wireless control.

Interval Shooting and Time-Lapse

Built-in interval controls allow the camera to capture repeated images over an extended period. These sequences can be used for star trails, image stacking and time-lapse films showing movement across the night sky.

Long-Exposure Noise Reduction

Long-exposure noise reduction can help minimise hot pixels and fixed-pattern noise. However, it requires the camera to capture an additional dark exposure of approximately equal duration.

When recording a large sequence for stacking, experienced astrophotographers may prefer to disable this function and capture separate dark calibration frames.

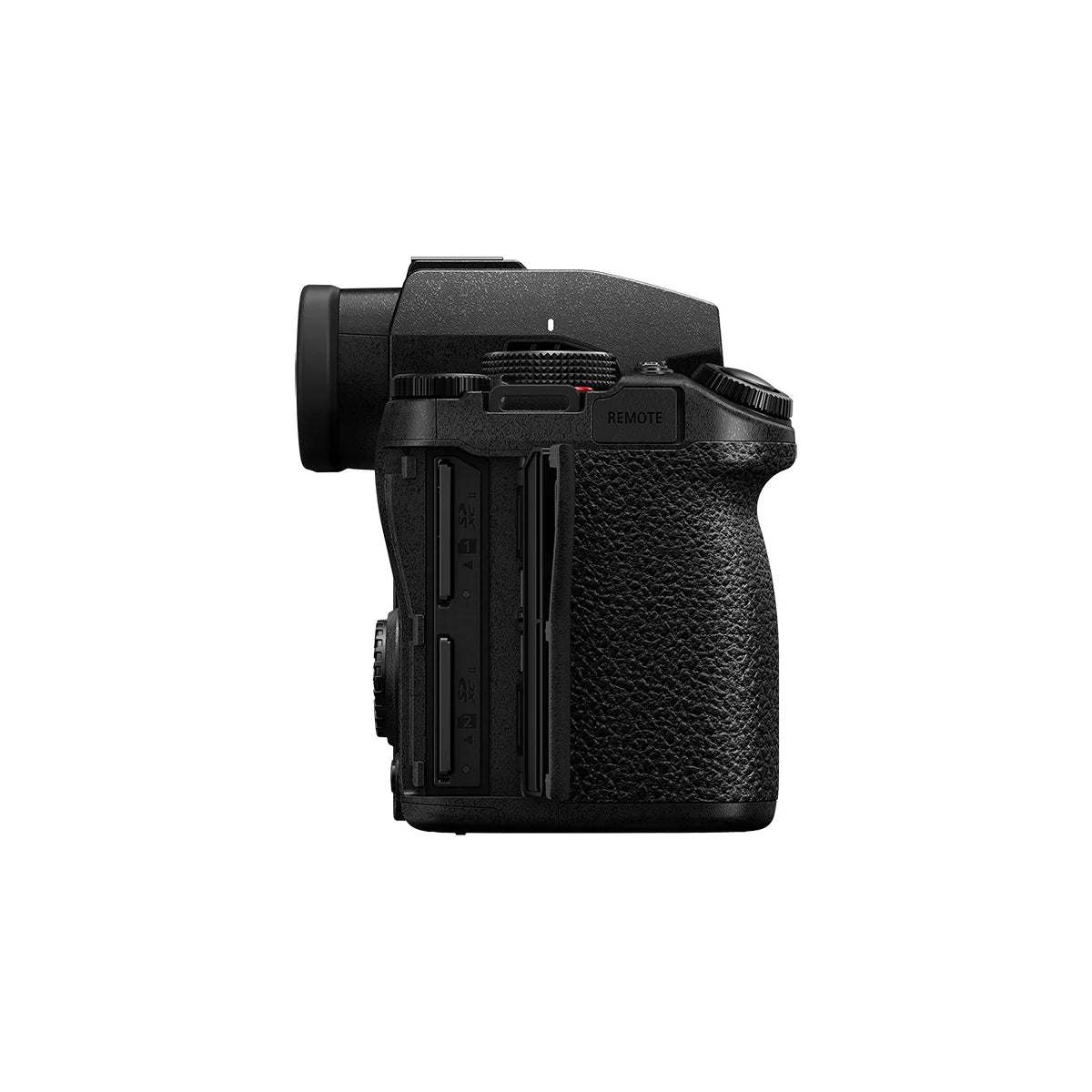

Dual UHS-II SD Card Slots

Two UHS-II SD memory-card slots provide flexible recording and backup options.

Files can be recorded sequentially, duplicated across both cards or allocated according to file type. This provides additional security during long imaging sessions and professional video productions.

USB Power and Charging

The camera supports USB charging and power delivery when used with compatible equipment. This can be particularly useful during long-exposure sessions, time-lapse sequences and extended video recording.

Cold weather and prolonged use of the monitor, wireless connectivity or video functions can increase power consumption, so spare batteries or a suitable external power source are recommended.

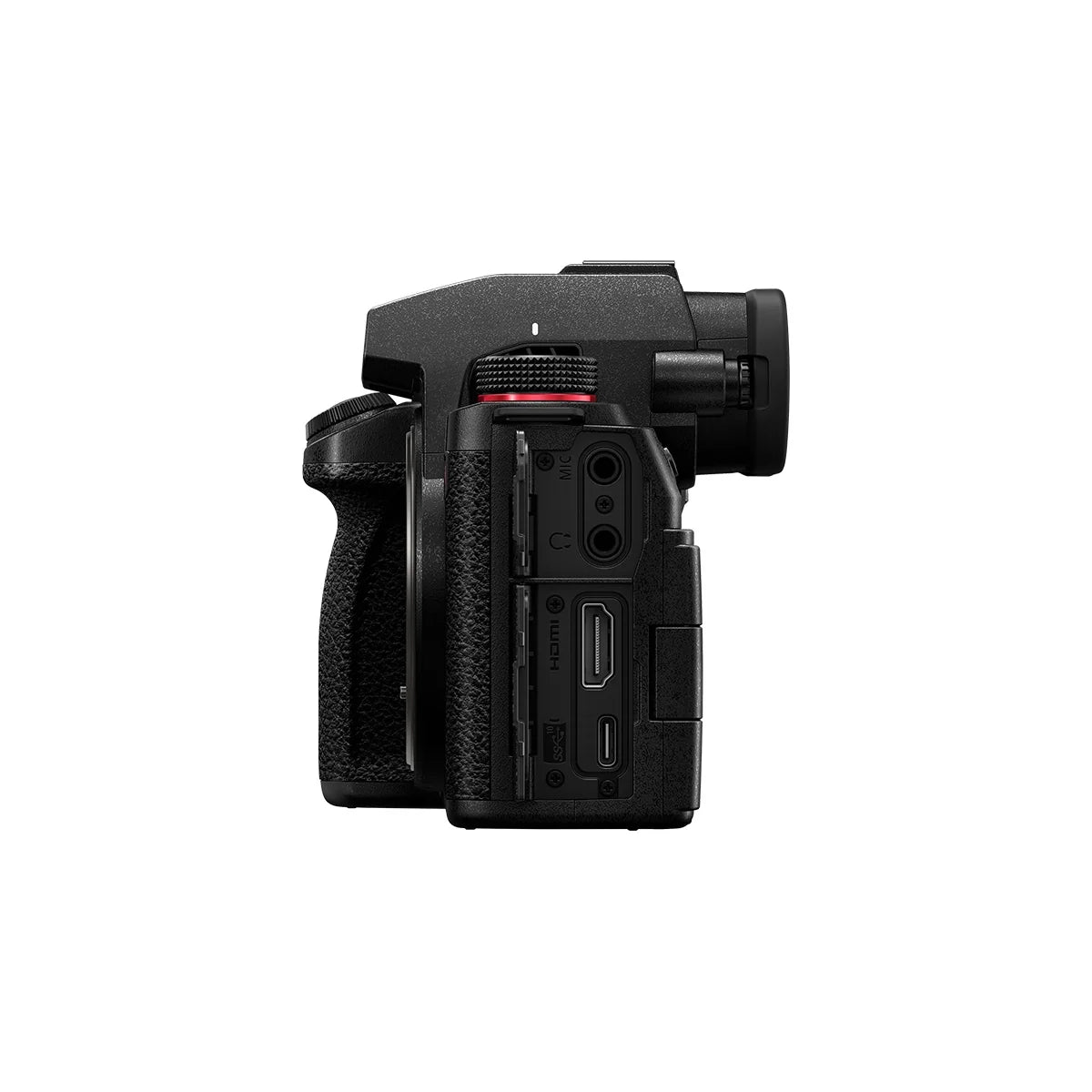

Full-Size HDMI Connection

A full-size HDMI Type A port provides a secure and convenient connection to compatible monitors and recording equipment.

This is particularly useful for professional video workflows and situations where the camera is mounted in a fixed or difficult-to-access position.

Durable, Weather-Resistant Construction

The magnesium-alloy frame and splash- and dust-resistant construction make the S5 II suitable for outdoor photography in demanding environments.

Suitable protection should still be used during heavy rain, severe condensation or prolonged exposure to dew.

Additional Specifications

• 24.2MP full-frame CMOS sensor

• Dual Native ISO technology

• Phase Hybrid autofocus

• 779-area autofocus system

• Five-axis in-body image stabilisation

• Active I.S. for video recording

• 96MP High Resolution Mode

• Up to 9fps mechanical-shutter continuous shooting

• Up to 30fps electronic-shutter continuous shooting

• 3.68-million-dot OLED electronic viewfinder

• 3-inch free-angle touchscreen

• Internal 6K 3:2 video at up to 30p

• Internal 5.9K 16:9 video at up to 30p

• 4K video at up to 60p

• 10-bit internal video recording

• V-Log and V-Gamut

• Real-Time LUT

• Waveform Monitor and Vector Scope

• Full HD high-frame-rate recording up to 120fps

• Integrated cooling fan

• Dual UHS-II SD memory-card slots

• Full-size HDMI Type A connection

• USB-C charging and power delivery

• Built-in 5GHz and 2.4GHz Wi-Fi

• Bluetooth connectivity

• Lumix L-Mount

• Splash- and dust-resistant construction

Ideal For

• Milky Way and wide-field astrophotography

• Constellation and star-field photography

• Nightscapes and astronomical landscapes

• Lunar and solar imaging with appropriate specialist equipment

• Prime-focus telescope photography

• Star trails and time-lapse sequences

• Portable star-tracking setups

• Astronomy filmmaking and educational content

• Low-light landscape, wildlife and travel photography

• Hybrid photography and video production

Explore the Night Sky with Lumix

The Panasonic Lumix S5 II combines impressive full-frame image quality, dependable low-light performance and professional video features in a compact and highly versatile camera body.

Whether you are photographing the Milky Way beneath dark Welsh skies, recording an extended time-lapse or connecting the camera to a compatible telescope, the S5 II provides the image quality, stability and creative control needed to take your astrophotography further.
